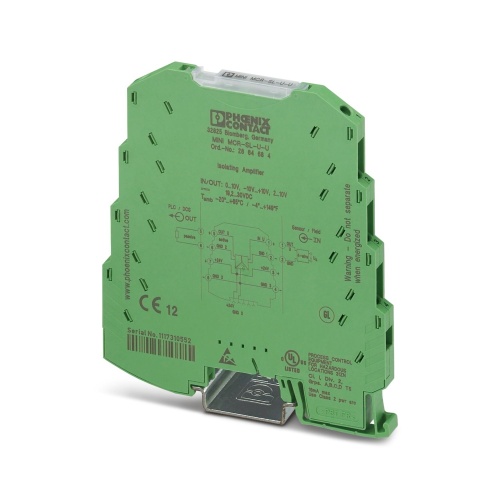

Phoenix Contact 2864684 Signal conditioner MINI MCR-SL-U-U
Normally In Stock
Code: 10455
MINI MCR-SL-U-U MINI MCR-SL-U-U Phoenix Contact 2864684 Signal Conditioner Isolating Amplifier
Condition: New
Usually ships Same Day or Next Day$366.14
Sale Price
$305.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

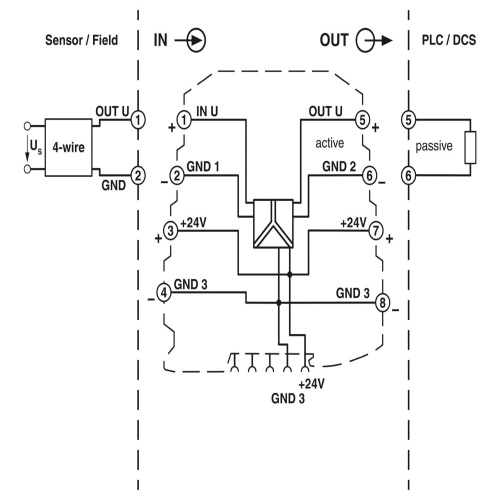

Phoenix Contact 2864684 The MCR 3-way isolating amplifier provides electrical isolation for analog signals and features a screw connection, allowing for input signals ranging from 0 to 10V with ±10V tolerance, while also delivering an output signal within the same range.
Specifications
Conditioner Connection Type
Screw Connection
Conditioner Isolation
3 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-10 Volt
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
-10-10 Volt
Component
Signal Conditioner
Conditioner Number of Channels
1
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Conditioner Output Signal Range
0 Volt - 10 Volt
Conditioner Output Signal Range
-10 Volt - 10 Volt
Features
Power supply possible via the foot element (TBUS)
Low power consumption
Entry-level alternative to configurable signal conditioners
Fixed signal combinations
Highly-compact isolating amplifier for electrical isolation, conversion, amplification, and filtering of standard analog signals
3-way isolation
Downloads
Phoenix 2864684 CAD data International.dxfPhoenix 2864684 CAD data International.pdfPhoenix 2864684 CAD data International.stpPhoenix 2864684 CAD Drawing.zipPhoenix 2864684 Manual English.pdfPhoenix 2864684 Manufacturers declaration English.pdfPhoenix 2864684 Manufacturers declaration International-2.pdfPhoenix 2864684 Manufacturers declaration International-3.pdfPhoenix 2864684 Manufacturers declaration International.pdfPhoenix 2864684 Package Slip International.pdfPhoenix 2864684 Product Information English.pdfPhoenix 2864684 Spec Sheet.pdfPhoenix 2864684 Tender Text English.zipPhoenix 2864684 User Manual.pdf
