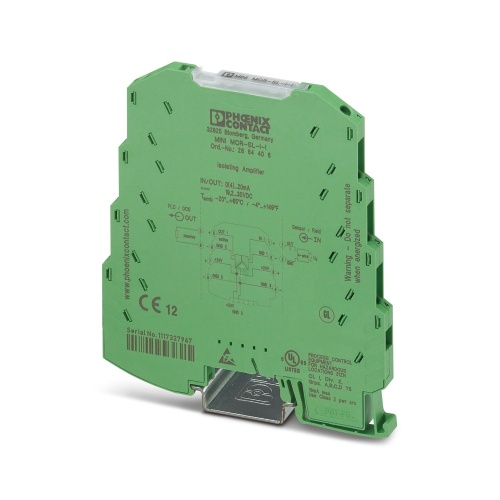

Phoenix Contact 2864406 Signal conditioner MINI MCR-SL-I-I
Normally In Stock
Code: 10453
MINI MCR-SL-I-I MINI MCR-SL-I-I Phoenix Contact 2864406 Signal Conditioner Isolating Amplifier
Condition: New
Usually ships Same Day or Next Day$366.14
Sale Price
$305.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2864406 A 3-way signal conditioner is used to electrically isolate analog signals, featuring a screw connection that allows for input signals ranging from 0-4 mA to 20 mA and corresponding output signals also in the same range.
Specifications
Conditioner Connection Type
Screw Connection
Conditioner Isolation
3 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Output Signal Range
4-20 Ma
Conditioner Supply Voltage
24 VDC
Component
Signal Conditioner
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Features
Power supply possible via the foot element (TBUS)
Entry-level alternative to configurable signal conditioners
Low power consumption
3-way isolation
Highly-compact isolating amplifier for electrical isolation, conversion, amplification, and filtering of standard analog signals
Fixed signal combinations
Downloads
Phoenix 2864406 CAD data International.dxfPhoenix 2864406 CAD data International.pdfPhoenix 2864406 CAD data International.stpPhoenix 2864406 CAD Drawing.zipPhoenix 2864406 Manual English.pdfPhoenix 2864406 Manufacturers declaration English.pdfPhoenix 2864406 Manufacturers declaration International-2.pdfPhoenix 2864406 Manufacturers declaration International-3.pdfPhoenix 2864406 Manufacturers declaration International.pdfPhoenix 2864406 Package Slip International.pdfPhoenix 2864406 Product Information English.pdfPhoenix 2864406 Spec Sheet.pdfPhoenix 2864406 Tender Text English.zipPhoenix 2864406 User Manual.pdf
