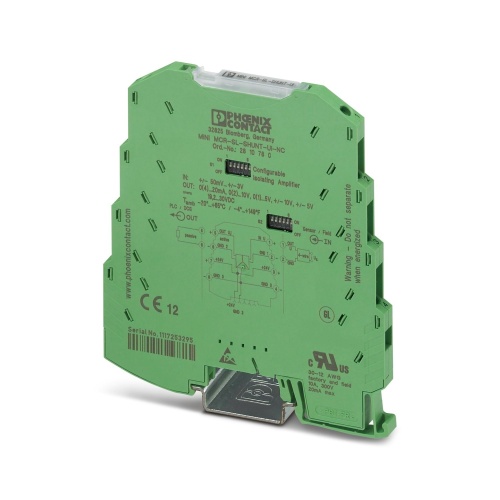

Phoenix Contact 2810780 Signal conditioner MINI MCR-SL-SHUNT-UI-NC
Normally In Stock
Code: 10443
MINI MCR-SL-SHUNT-UI-NC MINI MCR-SL-SHUNT-UI-NC Phoenix Contact 2810780 Signal Conditioner Isolating Amplifier
Condition: New
Usually ships Same Day or Next Day$345.34
Sale Price
$287.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2810780 The MCR 3-way signal conditioner features a configurable input/output design allowing for electrical isolation and analog signal conversion within the millivolt range, supporting both unipolar and bipolar configurations, and can be secured using screws without pre-configured settings.
Specifications
Conditioner Connection Type
Screw Connection
Conditioner Isolation
3 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Conditioner Output Signal Range
0-10 Volt
Conditioner Output Signal Range
0-5 Volt
Conditioner Output Signal Range
1-5 Volt
Conditioner Output Signal Range
2-10 Volt
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Output Signal Range
4-20 Ma
Conditioner Supply Voltage
24 VDC
Component
Signal Conditioner
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Number of Channels
1
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Conditioner Output Signal Range
0 Volt - 10 Volt
Conditioner Output Signal Range
-10 Volt - 10 Volt
Conditioner Output Signal Range
0 Volt - 5 Volt
Conditioner Output Signal Range
1 Volt - 5 Volt
Conditioner Output Signal Range
2 Volt - 10 Volt
Conditioner Output Signal Range
-5 Volt - 5 Volt
Features
Power supply possible via the foot element (TBUS)

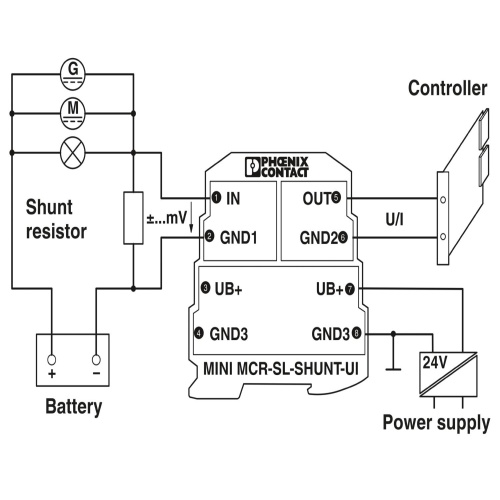

Ideal for converting signals for shunt measurements
Low power consumption
Highly-compact isolating amplifier for electrical isolation, conversion, amplification, and filtering of mV signals to create standard analog signals
Up to 280 signal combinations can be configured using DIP switches
3-way isolation
Downloads
Phoenix 2810780 CAD data International.dxfPhoenix 2810780 CAD data International.pdfPhoenix 2810780 CAD data International.stpPhoenix 2810780 CAD Drawing.pdfPhoenix 2810780 Data Sheet English.pdfPhoenix 2810780 Manual English.pdfPhoenix 2810780 Manufacturers declaration English.pdfPhoenix 2810780 Manufacturers declaration International-2.pdfPhoenix 2810780 Manufacturers declaration International-3.pdfPhoenix 2810780 Manufacturers declaration International.pdfPhoenix 2810780 Package Slip International.pdfPhoenix 2810780 Product Information English.pdfPhoenix 2810780 Software International.xlsPhoenix 2810780 Spec Sheet.zipPhoenix 2810780 Tender Text English.zipPhoenix 2810780 User Manual.pdf
