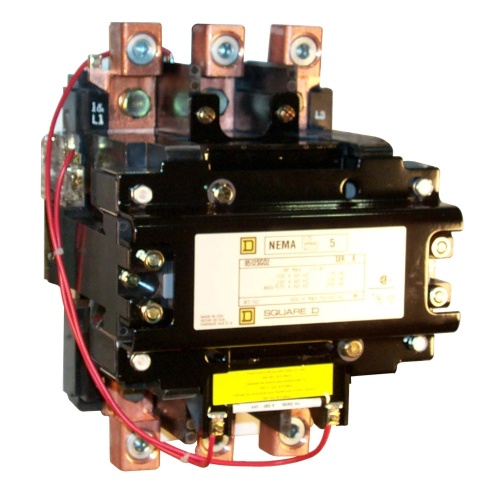

Schneider Electric 8502SGO1V02S NEMA Contactor, Type S, nonreversing, Size 5, 270A, 2 pole, 110/120 VAC 50/60 Hz coil, open style
Normally In Stock
Code: 103759
Buy Schneider 8502SGO1V02S 270 A Separate control circuit Fuse not supplied No control units Without 2P 5 120 V AC 60 Hz, 110 V AC 50 Hz Non-reversing Not rated Not rated (open device 1 Phase UL Listed, CSA Contactor NEMA Contactors and Overload Relays Type S Contactors 8502S Non
Condition: New
CALL FOR LEAD TIME$7906.15
Sale Price
$6588.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NEMA Contactor, Type S, nonreversing, Size 5, 270A, 2 pole, 110/120 VAC 50/60 Hz coil, open style
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Starter NEMA Size
5
Starter Auxiliary Contacts
Without
Starter Actions
Non-Reversing
Starter Coil Voltage
110 VAC
Component
NEMA Contactor
Sub Component
NEMA Type S Contactor
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Poles
Two Pole
Starter Amperage
270 Amp
Starter Frequency
50/60 Hz
Starter HP
Not Rated
Features
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately
Type S contactors have ratings up to 810 amperes
This 2 pole NEMA Size 5 non-reversing contactor has a 270 ampere rating
Single phase NEMA Size 5 contactors have no horsepower ratings
This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse
These contactors are available with replaceable coils in a wide variety of voltages
This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control
This NEMA contactor is an open device without an enclosure
This contactor is 12.31 inches tall, 8.67 inches wide and 8.75 inches deep
A wide variety of accessories are available for Type S contactors
Type S NEMA contactors are UL listed and CSA certified.
