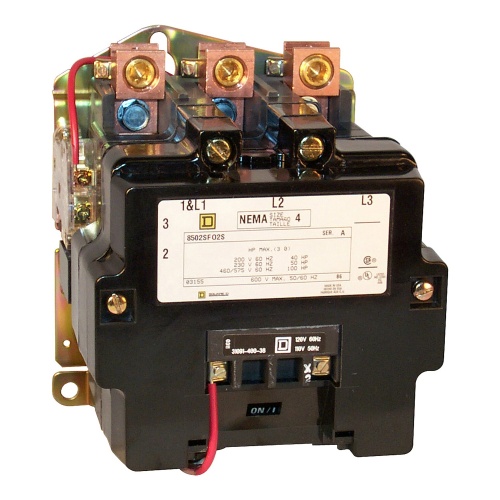

Schneider Electric 8502SFO2V08 NEMA Contactor, Type S, nonreversing, Size 4, 135A, 3 pole, 208 VAC 60 Hz coil, open style
Normally In Stock
Code: 103728
Buy Schneider 8502SFO2V08 135 A Common control circuit Fuse not supplied No control units Without 3P 4 208 V AC 60 Hz Non-reversing 40 HP 200 V AC, 50 HP 230 V AC, 100 HP 460 V AC, 100 HP 575 V AC Not rated (open device 3 Phase UL Listed, CSA Contactor NEMA Contactors and Overloa
Condition: New
CALL FOR LEAD TIME$3945.00
Sale Price
$3287.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
NEMA Contactor, Type S, nonreversing, Size 4, 135A, 3 pole, 208 VAC 60 Hz coil, open style
Specifications
Starter Enclosure Type
Open
Starter Frequency
60 Hz
Starter NEMA Size
4
Starter Coil Voltage
208 VAC
Starter Auxiliary Contacts
Without
Starter Actions
Non-Reversing
Starter HP
40 HP @ 200 VAC
Starter HP
50 HP @ 230 VAC
Starter HP
100 HP @ 460 VAC
Starter HP
100 HP @ 575 VAC
Component
NEMA Contactor
Sub Component
NEMA Type S Contactor
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Amperage
135 Amp
Features
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately
Type S contactors have ratings up to 810 amperes
This 3 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating
Three phase NEMA Size 4 contactors have 40 HP at 200, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings
This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse
These contactors are available with replaceable coils in a wide variety of voltages
This contactor has a 208 VAC 60 Hz coil that is wired for common control
This NEMA contactor is an open device without an enclosure
This contactor is 8.19 inches tall, 6.00 inches wide and 6.50 inches deep
A wide variety of accessories are available for Type S contactors
Type S NEMA contactors are UL listed and CSA certified.
