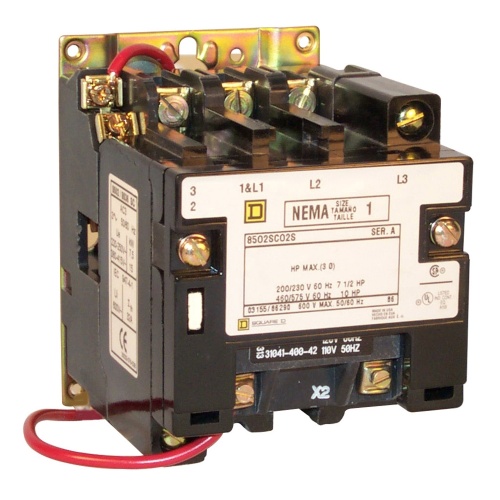

Schneider Electric 8502SCO1V02S NEMA Contactor, Type S, nonreversing, Size 1, 27A, 2 pole, 110/120 VAC 50/60 Hz coil, open style
Normally In Stock
Code: 103502
Buy Schneider 8502SCO1V02S 27 A Separate control circuit Fuse not supplied No control units Without 2P 1 120 V AC 60 Hz, 110 V AC 50 Hz Non-reversing 3 HP 230 V AC, 2 HP 115 V AC Not rated (open device 1 Phase CSA, UL Listed Contactor NEMA Contactors and Overload Relays Type S Co
Condition: New
CALL FOR LEAD TIME$485.40
Sale Price
$404.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NEMA Contactor, Type S, nonreversing, Size 1, 27A, 2 pole, 110/120 VAC 50/60 Hz coil, open style
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Starter NEMA Size
1
Starter Auxiliary Contacts
Without
Starter Actions
Non-Reversing
Starter Coil Voltage
110 VAC
Starter HP
3 HP @ 230 VAC
Starter HP
2 HP @ 115 VAC
Component
NEMA Contactor
Sub Component
NEMA Type S Contactor
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Poles
Two Pole
Starter Amperage
27 Amp
Starter Frequency
50/60 Hz
Features
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately
Type S contactors have ratings up to 810 amperes
This 2 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating
Single phase NEMA Size 1 contactors have 2 HP at 115 VAC and 3 HP at 230 VAC ratings
This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse
These contactors are available with replaceable coils in a wide variety of voltages
This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control
This NEMA contactor is an open device without an enclosure

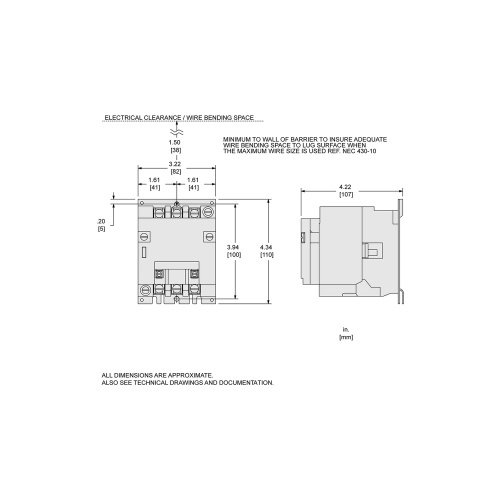

This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep
A wide variety of accessories are available for Type S contactors
Type S NEMA contactors are UL listed and CSA certified.
