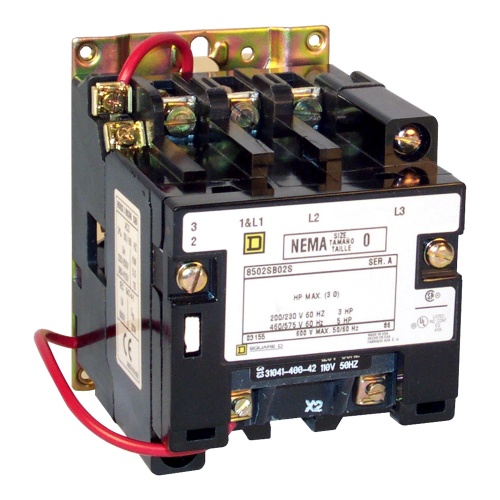

Schneider Electric 8502SBO3V02S NEMA Contactor, Type S, nonreversing, Size 0, 18A, 4 pole, 110/120 VAC 50/60 Hz coil, open style
Normally In Stock
Code: 103430
Buy Schneider 8502SBO3V02S 18 A Separate control circuit Fuse not supplied No control units Without 4P 0 120 V AC 60 Hz, 110 V AC 50 Hz Non-reversing 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC Not rated (open device 3 Phase CSA, UL Listed Contactor NEMA Contactors
Condition: New
CALL FOR LEAD TIME$718.02
Sale Price
$598.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NEMA Contactor, Type S, nonreversing, Size 0, 18A, 4 pole, 110/120 VAC 50/60 Hz coil, open style
Specifications
Starter NEMA Size
0
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Starter Auxiliary Contacts
Without
Starter Actions
Non-Reversing
Starter Coil Voltage
110 VAC
Starter HP
3 HP @ 200 VAC
Starter HP
3 HP @ 230 VAC
Starter HP
5 HP @ 460 VAC
Starter HP
5 HP @ 575 VAC
Component
NEMA Contactor
Sub Component
NEMA Type S Contactor
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Amperage
18 Amp
Starter Poles
Four Pole
Starter Frequency
50/60 Hz
Features
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately
Type S contactors have ratings up to 810 amperes
This 4 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating
Three phase NEMA Size 0 contactors have 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC ratings
This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse
These contactors are available with replaceable coils in a wide variety of voltages
This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control
This NEMA contactor is an open device without an enclosure
This contactor is 4.34 inches tall, 4.25 inches wide and 4.22 inches deep
A wide variety of accessories are available for Type S contactors
Type S NEMA contactors are UL listed and CSA certified.
