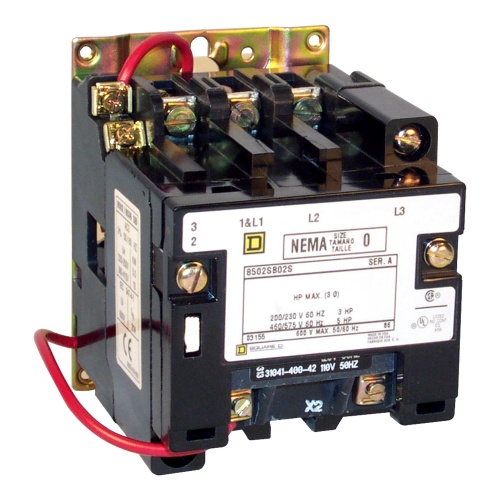

Schneider Electric 8502SBO2V08 NEMA Contactor, Type S, nonreversing, Size 0, 18A, 3 pole, 208 VAC 60 Hz coil, open style
Normally In Stock
Code: 103425
Buy Schneider 8502SBO2V08 18 A Common control circuit Fuse not supplied No control units Without 3P 0 208 V AC 60 Hz Non-reversing 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC Not rated (open device 3 Phase UL Listed, CSA Contactor NEMA Contactors and Overload Relay
Condition: New
CALL FOR LEAD TIME$457.45
Sale Price
$381.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
NEMA Contactor, Type S, nonreversing, Size 0, 18A, 3 pole, 208 VAC 60 Hz coil, open style
Specifications
Starter NEMA Size
0
Starter Enclosure Type
Open
Starter Frequency
60 Hz
Starter Coil Voltage
208 VAC
Starter Auxiliary Contacts
Without
Starter Actions
Non-Reversing
Starter HP
3 HP @ 200 VAC
Starter HP
3 HP @ 230 VAC
Starter HP
5 HP @ 460 VAC
Starter HP
5 HP @ 575 VAC
Component
NEMA Contactor
Sub Component
NEMA Type S Contactor
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Amperage
18 Amp
Features
This 3 pole NEMA Size 0 non-reversing contactor has a 18 ampere rating and 208 VAC coil
Switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided
Robust design and reliable build for long mechanical life and electrical endurance
