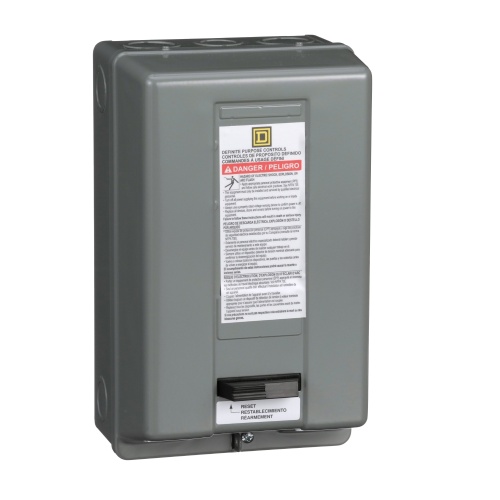

Schneider Electric 8911DPSG32V02 Starter, Definite Purpose, nonreversing, 30A, 2 pole, 1 Phase, 120 VAC coil, melting alloy overload, NEMA 1, +options
Normally In Stock
Code: 102741
Buy Schneider 8911DPSG32V02 30 A 2P 110 V AC 50 Hz, 120 V AC 60 Hz Definite Purpose Starter 2 HP 115 V AC, 1 Phase, 5 HP 230 V AC, 1 Phase 1 Phase NEMA 1 Motor Starters Definite Purpose Starters 8911 Definite Purpose Starters
Condition: New
Normally Stocked$403.61
Sale Price
$336.34
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Starter, Definite Purpose, nonreversing, 30A, 2 pole, 1 Phase, 120 VAC coil, melting alloy overload, NEMA 1, +options
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
NEMA 1
Starter HP
5 HP @ 230 VAC 1 Phase
Starter Coil Voltage
110 VAC
Starter HP
2 HP @ 115 VAC 1 Phase
Component
NEMA Starter
Sub Component
Definite Purpose Starter
Manufacturer
Schneider Electric
Starter Poles
Two Pole
Starter Amperage
30 Amp
Features
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles
Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment
This two pole definite purpose starter has a full load rating of 30 amperes
This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase
The nonreplaceable coil is available with a variety of coil voltages
This device has a 110/120 VAC 50/60 Hz coil
The starter has straight through wiring
The melting alloy type overload relay uses Type B thermal units to sense over current conditions
A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter
Enclosure is 8.50 inches tall, 4.84 inches wide and 4.02 inches deep
Auxiliary contacts are available for these starters
8911DPS definite purpose starters are UL component recognized.
