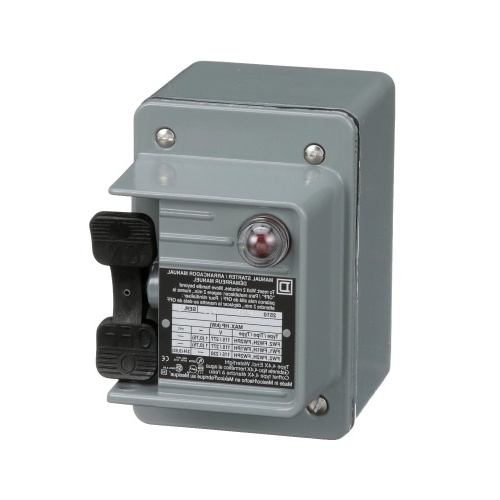

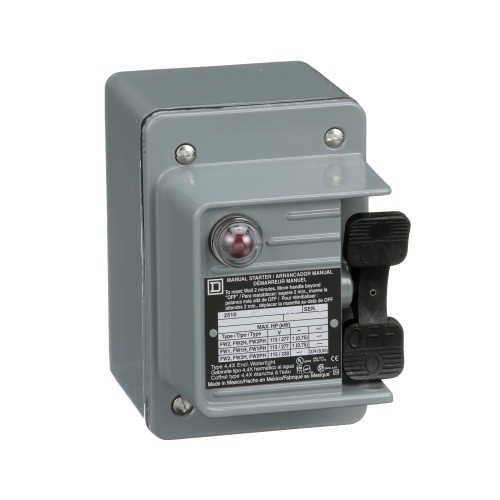

Schneider Electric 2510FW1PH Manual Starter, fractional horsepower, 16A, 1 pole, 1 HP at 277 VAC, red indicator, NEMA 4 enclosure, 2 conduit opening
Normally In Stock
Code: 102414
Buy Schneider 2510FW1PH Single Unit Manual Starter 0.75 NPT (top and bottom 1P Toggle switch (with lock-off Red indicator Non-reversing NEMA 4 die cast zinc alloy standard size Manual Starters / Protectors Fractional Horsepower Starters 2510F Fractional Horsepower Starters
Condition: New
CALL FOR LEAD TIME$592.42
Sale Price
$493.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Contactor, NIGHT MASTER, combination lighting, 100A, 3 pole, fuse, 110/120 VAC 50/60 Hz coil. NEMA 3R
Specifications
Starter Enclosure Type
NEMA 4
Starter Actions
Non-Reversing
Starter Indicator Light
Indicator
Component
Single Unit Manual Starter
Sub Component
Fractional Horsepower Starter
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Indicator Light
Red
Starter Poles
Single Pole
Features
2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors
Designed for fractional single phase motors up to 1 HP
The toggle operator provides an easy manual On-Off control of small motors
These manual starters are used in a variety of industrial and commercial installations
Typical applications include fans, conveyors, pumps, and small machine tools
Melting alloy thermal units are used with this manual starter to sense over current conditions
Overload thermal unit is ordered separately to match motor data
This 1 pole nonreversing manual starter has a 16A current rating
Starter has a 1 HP rating at 115, 230, and 277 VAC
A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this starter
This enclosure has one conduit entry on the bottom and one on the top
The 0.75 inch conduit entries are tapped with number 14 pipe threads
This manual starter is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep
A toggle handle is used to turn the manual starter on and off
The toggle handle can be padlocked in the off position
This device has a red pilot light indicator
Manual starter is UL listed and CSA certified.
