Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

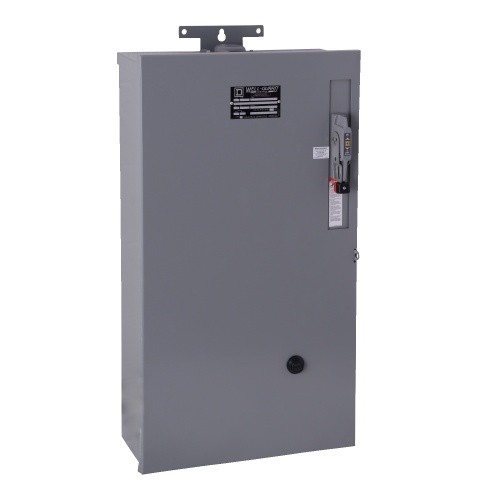

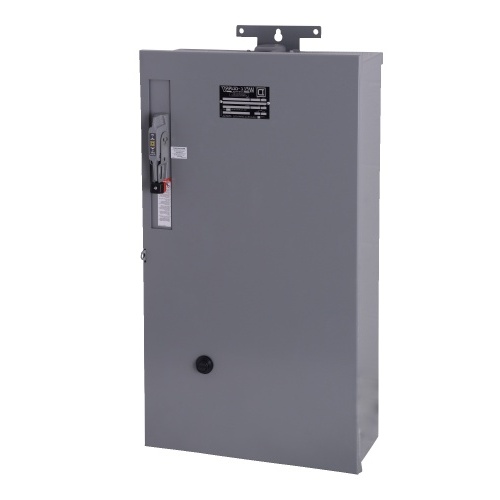

Schneider Electric 8940XD4S2V02H30S Well-Guard Pump Panel Size 2, Motor Logic SSOLR, 480 VAC, NEMA 3R +Options
Normally In Stock
Code: 101826
Buy Schneider 8940XD4S2V02H30S Separate control circuit 45 A 3 2 120 V AC 60 Hz, 110 V AC 50 Hz Associated circuit breaker Motor Logic solid state class 10/20 Selector switch HAND-OFF-AUTO HLL 50 A Overload, Phase loss, Phase unbalance Well-Guard Control 21395 - 8940 XC,XD 25 HP
Condition: New
CALL FOR LEAD TIME$3958.72
Sale Price
$3298.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Contactor, Definite Purpose, auxiliary contact, 3A at 120 VAC, 1 NO contact and 1 NC contact, for 50A to 90A contactors
Specifications
Starter Coil Voltage
120 VAC
Starter NEMA Size
2
Starter Enclosure Type
NEMA 3R
Starter HP
25 HP @ 480 VAC 3 Phase
Starter Coil Voltage
110 VAC
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
45 Amp
Starter Actions
Associated Circuit Breaker
Starter Actions
Motor Logic Solid State Class 10/20
Features
Flexible with four overload relays: Motor Logic™ solid state, Adapted Bimetal, and melting alloy types
Pump panels are extremely customizable with other devices and accessories
Robust design and reliable build for long mechanical life and electrical endurance
