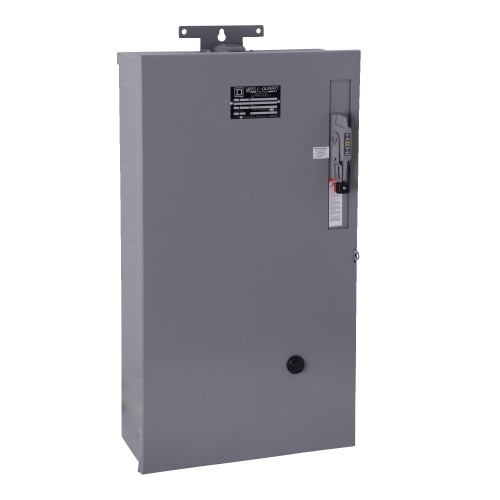

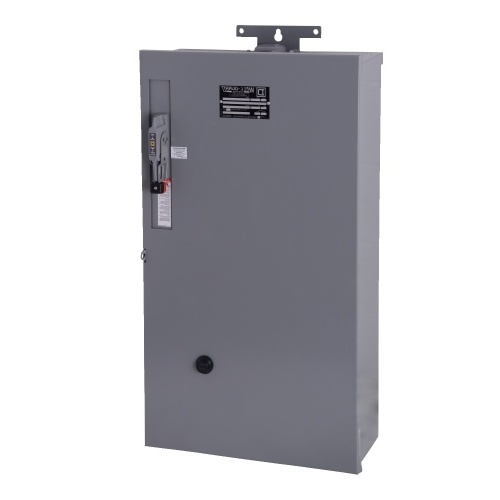

Schneider Electric 8940XC4S2V02SY61 Well-Guard Pump Panel Size 1, Thermal Melting Alloy, 480 VAC, NEMA 3R +Options
Normally In Stock
Code: 101821
Buy Schneider 8940XC4S2V02SY61 Separate control circuit 27 A 3 1 120 V AC 60 Hz, 110 V AC 50 Hz Associated circuit breaker melting alloy Selector switch HAND-OFF-AUTO HLL 30 A Overload Well-Guard Control 21395 - 8940 XC,XD 10 HP 480 V AC, 3 Phase NEMA 3R Combination Starters & Pu
Condition: New
CALL FOR LEAD TIME$3081.89
Sale Price
$2568.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Contactor, Definite Purpose, 75A, 3 pole, 40 HP at 575 VAC, 3 Phase, 110/120 VAC 50/60 Hz coil, open, UL Listed
Specifications
Starter Coil Voltage
120 VAC
Starter NEMA Size
1
Starter Enclosure Type
NEMA 3R
Starter HP
10 HP @ 480 VAC 3 Phase
Starter Coil Voltage
110 VAC
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
27 Amp
Starter Actions
Melting Alloy
Features
Well-Guard pumping plant panels are designed for pumping applications
This panel is specifically designed for oil field applications
These panels provide extra space for field installation of auxiliary equipment
These panels us Type S non-reversing magnetic starters
Panel has a HLL36030M71 circuit breaker
This panel has a 3 pole NEMA Size 1 starter that has a 27 ampere rating
This NEMA Size 1 starter has a maximum of 10 HP rating three phase
This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
The starters in these panels are available with a wide variety of replaceable coil voltages
The starter in this device has a 110/120 VAC 50/60 Hz operating coil wired for separate control
A painted sheet steel NEMA 3R rainproof slim line enclosure is used to protect this starter
Enclosure is 38.50 inches tall, 19.00 inches wide and 9.39 inches deep
A wide variety of accessories are available for Type S starters
This pump panel is supplied with a HAND/OFF/AUTO selector switch
These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment
They are also CSA certified.
