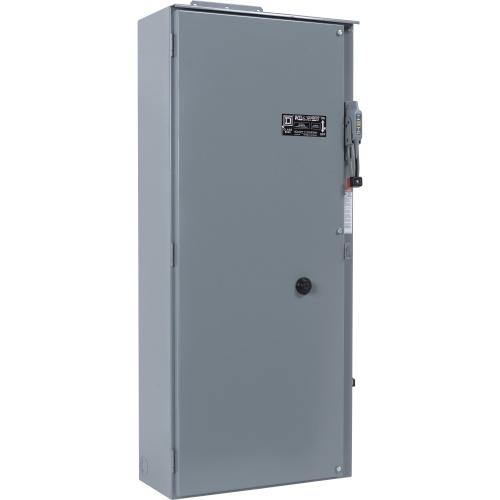

Schneider Electric 8940SSF4100V02G45S Well-Guard Pump Panel Size 4, Motor Logic SSOLR, 480 VAC, NEMA 3R +Options
Normally In Stock
Code: 101738
Buy Schneider 8940SSF4100V02G45S Separate control circuit 135 A 3 4 480 V AC 60 Hz, 440 V AC 50 Hz Fusible disconnect switch Motor Logic solid state class 10/20 H or K Selector switch HAND-OFF-AUTO, Push-button START 200 A Overload, Phase loss, Phase unbalance Well-Guard Control
Condition: New
CALL FOR LEAD TIME$10669.45
Sale Price
$8891.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Contactor, Definite Purpose, 20A, 2 pole, 110/120 VAC 50/60 Hz coil, open, DIN rail mounting
Specifications
Starter NEMA Size
4
Starter Coil Voltage
480 VAC
Starter Enclosure Type
NEMA 3R
Starter HP
100 HP @ 480 VAC 3 Phase
Starter Coil Voltage
440 VAC
Starter Actions
Motor Logic Solid State
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
135 Amp
Starter Actions
Fusible Disconnect Switch
Features
Well-Guard pumping plant panels are designed for pumping applications
These panels provide extra space for field installation of auxiliary equipment
These panels use Type S non-reversing magnetic starters
Panel has a 200A fusible disconnect switch for Class H or K fuses
This panel has a 3 pole NEMA Size 4 non-reversing starter that has a 135 ampere rating
This NEMA Size 4 starter has maximum of 60 HP, 75 HP and 100 HP ratings three phase
This non-reversing NEMA motor starter has a Motor Logic overload relay with a 45A to 135A range to sense over current conditions
This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
The starters in these panels are available with a wide variety of replaceable coil voltages
The starter in this device has a 110/120 VAC 50/60 Hz operating coil wired for separate control

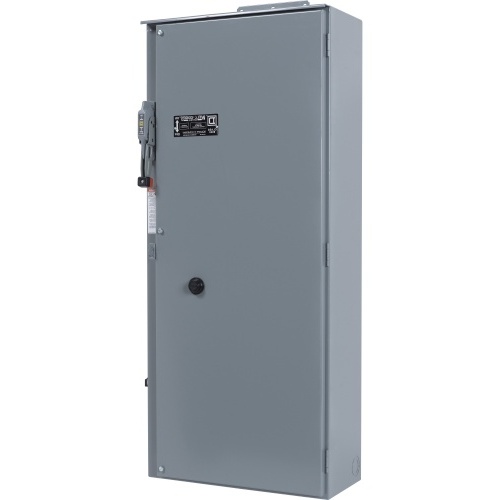

A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter
Enclosure is 49.00 inches tall, 19.15 inches wide and 10.37 inches deep
A wide variety of accessories are available for Type S starters
Panel has a door wind latch
This pump panel is also supplied with a START momentary push button and a HAND/OFF/AUTO selector switch
These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment
They are also CSA certified.
