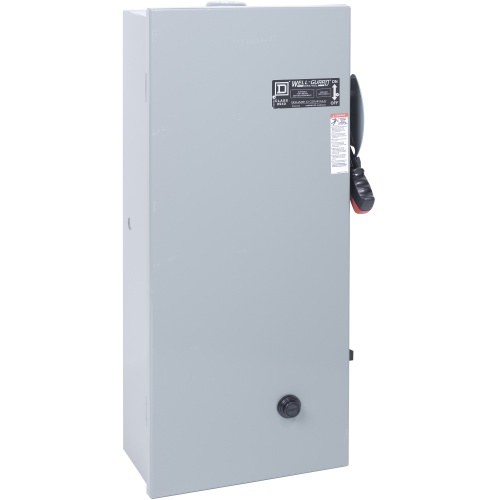

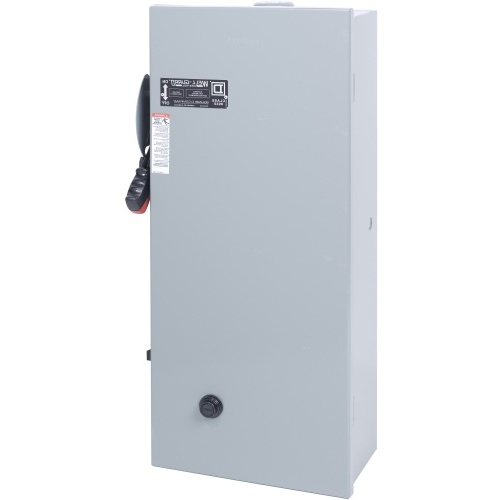

Schneider Electric 8940SSC4010B1210HP Well-Guard Pump Panel Size 1, Bimetallic Overload Relay, 480VAC, NEMA 3R+Options
Normally In Stock
Code: 101729
Buy Schneider 8940SSC4010B1210HP Common control circuit 27 A 3 1 480 V AC 60 Hz, 440 V AC 50 Hz Fusible disconnect switch ambient compensated bimetallic H or K Selector switch HAND-OFF-AUTO, Push-button START 30 A Overload, Phase loss, Phase unbalance Well-Guard Control 21388 - 8
Condition: New
CALL FOR LEAD TIME$2080.03
Sale Price
$1733.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Contactor, Definite Purpose, 30A, 4 pole, 20 HP at 575 VAC, 3 Phase, 440/480 VAC 50/60 Hz coil, open
Specifications
Starter NEMA Size
1
Starter Coil Voltage
480 VAC
Starter Enclosure Type
NEMA 3R
Starter HP
10 HP @ 480 VAC 3 Phase
Starter Coil Voltage
440 VAC
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
27 Amp
Starter Actions
Fusible Disconnect Switch
Starter Actions
Ambient Compensated Bimetallic
Features
Well-Guard pumping plant panels are designed for pumping applications
These panels provide extra space for field installation of auxiliary equipment
These panels use Type S non-reversing magnetic starters
Panel has a 30A fusible disconnect switch for Class H or K fuses
This panel has a 3 pole NEMA Size 1 non-reversing starter that has a 27 ampere rating
This NEMA Size 1 starter has maximum of 10 HP rating three phase
This non-reversing NEMA motor starter has an IEC ambient compensated bimetallic overload relay to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
The starters in these panels are available with a wide variety of replaceable coil voltages
The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control
A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter
Enclosure is 39.05 inches tall, 13.73 inches wide and 9.70 inches deep
A wide variety of accessories are available for Type S starters
This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch
These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment
They are also CSA certified.
