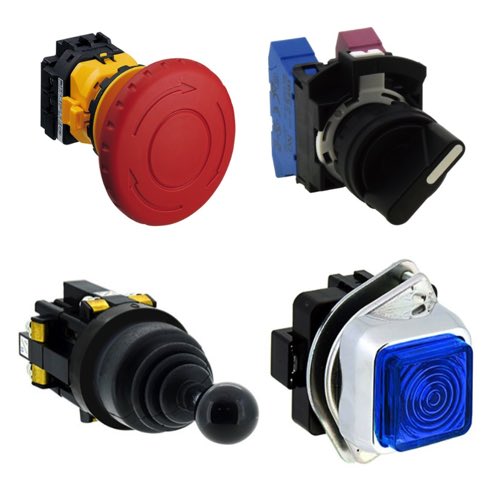

IDEC Push Buttons, Switches & Signaling Devices
The IDEC series of electrical devices used in control operations, and which provide visual or audible indications, consist of expertly designed components that ensure reliable operator interaction. The push buttons in this series, for instance, are offered in multiple sizes and configurations. And while all of them provide the same basic function—user-initiated control of some process or piece of equipment—they do within a pretty wide range of industrial applications.
Controlling several industrial processes from a single operator panel can be achieved using not just push buttons, but also devices providing a range of controls: selectors, signal towers, beacons, horns and strobes. These signaling products are designed to work dependably when they are exposed to dust, vibration, and temperature extremes. They ensure that operators in critical situations are kept informed and are able to act responsively.
FAQs
What kind of installation time and information is needed to install IDEC pilot devices in machinery?
IDEC pilot devices feature quick-mount modular designs that minimize installation time, requiring only basic wiring, mounting hole dimensions, and reference to the provided installation documents for proper setup.
Are pushbuttons a good choice for machine status control?
Yes, pushbuttons are an ideal choice for machine status control because they provide simple, direct, and reliable manual input for starting, stopping, or resetting machine functions while offering clear feedback to the operator.
Are potentiometers a good choice for rotating control around a single point?
Yes, potentiometers are a good choice for rotating control around a single point because they allow smooth, precise adjustment of variables such as voltage, speed, or intensity within a single rotary motion.
Are IDEC pilot devices sealed against dust, gas and vapors?
Yes, IDEC pilot devices are sealed against dust, gas, and vapors, featuring high IP ratings such as IP65 or higher to ensure reliable operation in harsh industrial environments.
Are IDEC pilot device items designed with safety in mind?
Yes, IDEC pilot device items are designed with safety in mind, incorporating features like emergency stop options, reliable contact mechanisms, and compliance with international safety standards to protect operators and equipment.
Maintaining NEMA 4 Rating When Making Enclosure Penetrations
Cutouts are very common when modifying enclosures for push buttons, indication lights, conduit entries or mounting hardware. Cutting into an enclosure runs the risk of eliminating the protective nature of the NEMA rated attributes. Proper steps must be followed in order to preserve the NEMA rating of an enclosure.
Devices mounted to the enclosure must have the same NEMA rating as the enclosure.
This means that if the devices are installed to the manufacturer's specifications, they will be able to maintain the NEMA rating of the enclosure.
Water tight conduit hubs must be used when running wire through a cutout in an enclosure.
There are many different types of conduit hubs that are used to secure conduit to an enclosure. However, only certain conduit hubs are rated for a watertight seal. By using water tight hubs, the NEMA rating of the enclosure is maintained.
Bonded washers are necessary when mounting hardware to an enclosure.
If standard mounting hardware is used, the NEMA rating of the enclosure will no longer be maintained. Bonded washers have rubber gaskets that make a watertight seal around the drilled hole. It is also important to make sure the material used for the bonded washer matches the material of the enclosure. Stainless steel enclosures require stainless steel bonded washers.
