IDEC Terminal Blocks

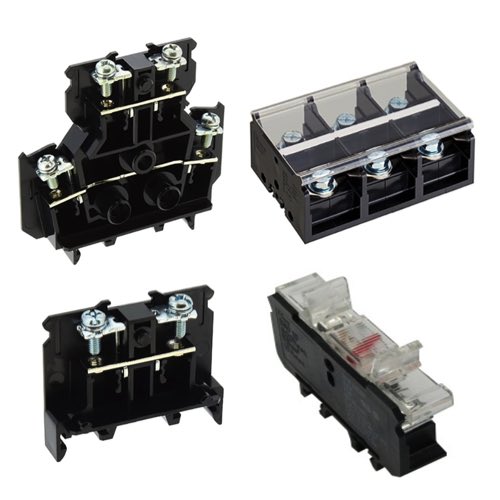

IDEC terminal blocks are available as DIN rail mount screw terminal blocks, pluggable terminal blocks, and barrier panel mount terminal blocks in the BN, BNH, BTBH, and BA series with pitch spacings from 5.08mm to 15.5mm, conductor sizes from 22AWG to 0AWG, and current ratings from 10A to 150A for industrial control panels, machinery, and automation systems.
IDEC terminal blocks provide reliable, secure electrical connections for industrial control panels, machinery, and automation systems. Designed for efficient wiring and long-term durability, these terminal blocks support organized panel layouts while allowing easy access for installation, inspection, and maintenance. All IDEC terminal blocks in the BN and BNH series are RoHS compliant and use robust screw-clamp connection technology to ensure stable, vibration-resistant connections in demanding industrial environments.
IDEC BN and BNH Series DIN rail mount terminal blocks are available in current ratings of 10A, 15A, 30A, 50A, 75A, and 150A across conductor cross-sections from 2mm² to 38mm² and wire sizes from 22AWG to 0AWG. Models include the BNH10W at 10A, BNH15MW and BNH15LW at 15A, BNH30W and BN30W at 30A, BNH50W at 50A, BN75W at 75A, and BN150W at 150A, all with screw connection technology and compatibility with NS 35 DIN rail mounting. IDEC BTBH Series pluggable terminal blocks are available in 10.5mm, 12mm, and 15.5mm pitch spacings with current ratings of 15A, 30A, and 50A in configurations up to 25 positions, supporting conductor sizes from 22AWG to 6AWG with screw connection technology. The BA211TU barrier panel mount terminal block provides a 2-row, 3-position configuration at 9.8mm pitch for 20A panel surface mounting applications.
IDEC terminal block accessories include end covers in the BNE15W, BNE30W, BNE50W, BNE150W, and BNDE15W series for BN and BNH terminal block protection, DIN rail stops in the BNL-8 series for component positioning, and terminal block markers in the BNM3, BNM7, and BNM9 series for clear circuit identification and panel organization.
FAQs
Q: What types of IDEC terminal blocks are available?
IDEC offers DIN rail mount screw terminal blocks in the BN and BNH series, pluggable terminal blocks in the BTBH series, and barrier panel mount terminal blocks in the BA series, with current ratings from 10A to 150A and conductor sizes from 22AWG to 0AWG.
Q: What current ratings are available in the IDEC BN and BNH Series terminal blocks?
IDEC BN and BNH Series DIN rail terminal blocks are available in 10A, 15A, 30A, 50A, 75A, and 150A current ratings, supporting conductor cross-sections from 2mm² to 38mm² and wire sizes from 22AWG to 0AWG depending on the model selected.
Q: What are IDEC BTBH Series pluggable terminal blocks used for?
IDEC BTBH Series pluggable terminal blocks provide modular multi-position wiring solutions in 10.5mm, 12mm, and 15.5mm pitch spacings at 15A, 30A, and 50A ratings, suitable for compact automation panel builds requiring flexible plug-in connectivity in configurations up to 25 positions.
Q: Can IDEC terminal blocks be used with ferrules or ring terminals?
Yes. Many IDEC terminal blocks are compatible with ferrules and ring terminals depending on the specific model, providing flexibility during wiring and panel assembly in industrial control applications.
Q: What accessories are available for IDEC terminal blocks?
IDEC terminal block accessories include end covers in the BNE and BNDE series, DIN rail stops in the BNL-8 series, and terminal block markers in the BNM3, BNM7, and BNM9 series for circuit identification, protection, and organized panel assembly.
