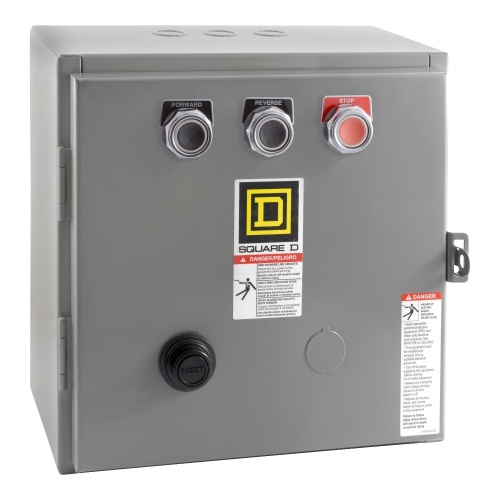

Schneider Electric 8736SAG16V02S NEMA Motor Starter, Type S, reversing, Size 00, 9A, 3 pole, horizontal, 120 VAC coil, melting alloy overload, NEMA 1
Normally In Stock
Code: 98053
Buy Schneider 8736SAG16V02S 00 9 A Melting alloy 3 3P NEMA 1 painted sheet steel 110 V AC 50 Hz, 120 V AC 60 Hz Separate control circuit No control units 1.5 HP 200 V AC, 1.5 HP 230 V AC, 2 HP 460 V AC, 2 HP 575 V AC 3 Phase NEMA, CSA, UL Listed NEMA Starters NEMA Type S Motor St
Condition: New
CALL FOR LEAD TIME$1151.18
Sale Price
$959.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 50 A - 660 V AC 50/60 Hz coil
Specifications
Starter NEMA Size
0
Starter Coil Voltage
120 VAC
Starter Enclosure Type
NEMA 1
Starter Coil Voltage
110 VAC
Starter HP
1.5 HP @ 200 VAC
Starter HP
1.5 HP @ 230 VAC
Starter HP
2 HP @ 460 VAC
Starter HP
2 HP @ 575 VAC
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Reversing Starter
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
9 Amp
Features
Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors
NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes
NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay
Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements
This reversing starter is arranged horizontally
This 3 pole NEMA Size 00 reversing starter has a 9 ampere rating
This three phase NEMA Size 00 reversing starter has 1.5 HP at 200 and 230 VAC and 2 HP at 460 and 575 VAC ratings
This reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control
A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter
Enclosure is 11.88 inches tall, 11.88 inches wide and 7.53 inches deep
A wide variety of accessories are available for Type S starters
Type S reversing NEMA motor starters are UL listed and CSA certified.
