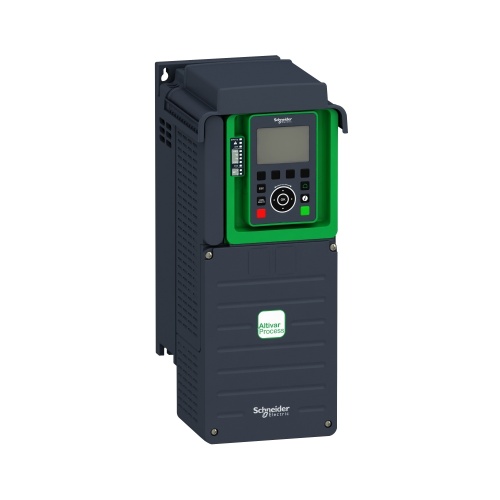

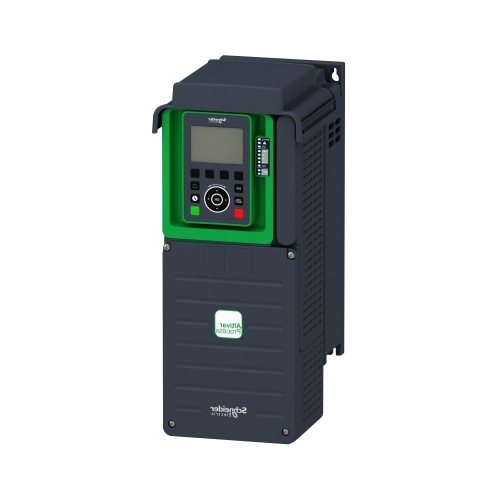

Schneider Electric ATV930U22S6X variable speed drive, ATV930, 3 HP, 600V, IP21
Normally In Stock
Code: 97376
Schneider ATV930U22S6X IP21 IEC 61800-5-1, IP21 IEC 60529 4.2 A 4 kHz normal duty, 3.1 A 4 kHz heavy duty Standard version, With braking chopper Variable speed drive Modbus TCP, Ethernet/IP, Modbus serial 3 HP 600 V normal duty, 2 HP 600 V heavy duty 2.9 A 600 V normal duty, 2.1 *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Normally Stocked$2437.27
Sale Price
$2031.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
variable speed drive, ATV930, 3 HP, 600V, IP21
Specifications
VFD Torque
Constant Torque
VFD Application
Compressor
VFD Application
Conveyor
VFD Application
Positive Displacement Pump
VFD Application
Mixer
VFD Application
Hoist
VFD Application
Traction Drive
VFD Horsepower Output
3 HP
VFD Amperage Output
4.2 Amp
Drive Type
Standard Version
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
Option Card Slots
Modbus TCP
Option Card Slots
Ethernet/IP
VFD Frame Type
Altivar Process ATV900
Option Card Slots
2 RJ45 Ethernet IP/Modbus TCP On The Control Block
Option Card Slots
1 RJ45 Modbus Serial On The Control Block
Drive Type
With Braking Chopper
VFD Frame Type
22276 - ATV930 FRAMES 1 & 2
Manufacturer
Schneider Electric
VFD Input Voltage
600 Volt Three Phase
VFD Output Voltage
600 Volt Three Phase
VFD NEMA-IP Rating
IP21
VFD Line
Altivar ATV930
VFD EMC Filter
Without
Features
Master-slave load sharing
Hoisting management
High accuracy torque control
Embedded dual-port ethernet
Advanced safety
WebServer — DHCP with native EtherNet
Adaptive Cascade Vector Control - ACVC
Fast Device Replacement
Energy monitoring with current sensor
Achilles L2 cyber-security
High-speed hoisting
Brake logic control
Rope slack handling
DC injection for fast stop
IGBT monitoring
STO: Safe Torque Off
SLS: Safely Limited Speed
SS1: Safe Stop 1
SMS: Safe Maximum Speed
SBC: Safe Brake Control
GDL: Guard Door Locking
Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink
Embedded: Ethernet, Modbus
