Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

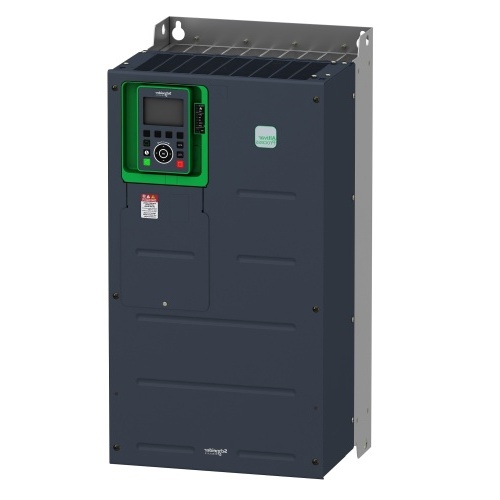

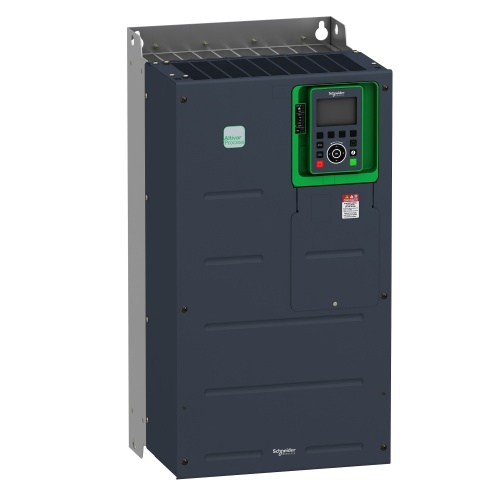

Schneider Electric ATV930D45Y6 variable speed drive, ATV930, 45kW/60HP, 500V/690V, IP00
Normally In Stock
Code: 97360
Schneider ATV930D45Y6 IP00 IEC 61800-5-1, IP00 IEC 60529, IP20 IEC 61800-5-1 with kit VW3A9706, IP20 IEC 60529 with kit VW3A9706 37 kW 500 V normal duty, 30 kW 500 V heavy duty, 45 kW 690 V normal duty, 37 kW 690 V heavy duty 55 A 2.5 kHz normal duty, 45 A 2.5 kHz heavy duty With *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Normally Stocked$11254.92
Sale Price
$9379.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
variable speed drive, ATV930, 45kW/60HP, 500V/690V, IP00
Specifications
VFD Torque
Constant Torque
VFD Application
Compressor
VFD Application
Conveyor
VFD Application
Positive Displacement Pump
VFD Application
Mixer
VFD Application
Hoist
VFD Application
Traction Drive
VFD Horsepower Output
50 HP
Drive Type
Standard Version
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
Option Card Slots
Modbus TCP
VFD EMC Filter
Integrated 82.02 Ft (25 M EN/IEC 61800-3 Category C3
Option Card Slots
Ethernet/IP
VFD Frame Type
Altivar Process ATV900
Option Card Slots
2 RJ45 Ethernet IP/Modbus TCP On The Control Block
Option Card Slots
1 RJ45 Modbus Serial On The Control Block
Drive Type
With Braking Chopper
VFD Frame Type
22276 - ATV930 FRAMES 1 & 2
Manufacturer
Schneider Electric
VFD Amperage Output
55 Amp
VFD Input Voltage
600 Volt Three Phase
VFD Output Voltage
600 Volt Three Phase
VFD NEMA-IP Rating
IP21
VFD Line
Altivar ATV930
Features
Master-slave load sharing
Hoisting management
High accuracy torque control
Embedded dual-port ethernet
Advanced safety
WebServer — DHCP with native EtherNet
Adaptive Cascade Vector Control - ACVC
Fast Device Replacement
Energy monitoring with current sensor
Achilles L2 cyber-security
High-speed hoisting
Brake logic control
Rope slack handling
DC injection for fast stop
IGBT monitoring
STO: Safe Torque Off
SLS: Safely Limited Speed
SS1: Safe Stop 1
SMS: Safe Maximum Speed
SBC: Safe Brake Control
GDL: Guard Door Locking
Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink
Embedded: Ethernet, Modbus
