Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

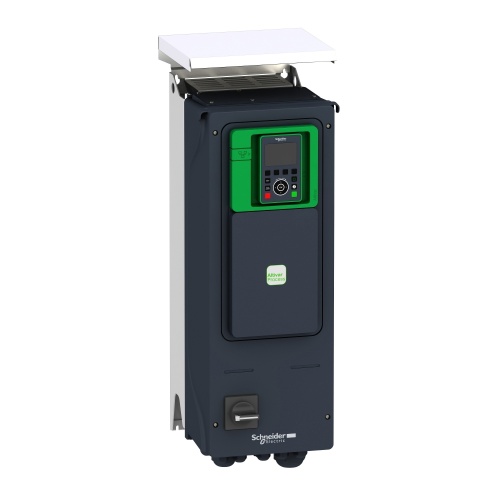

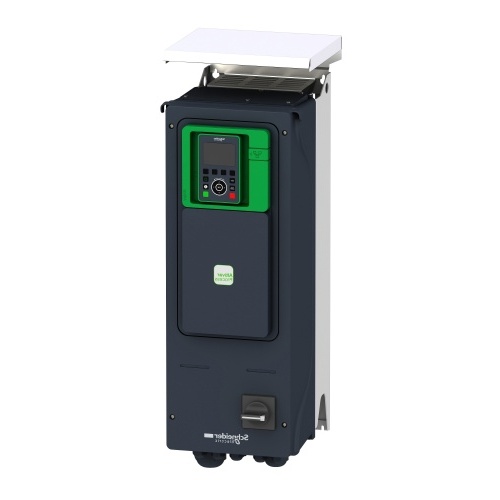

Schneider Electric ATV950U15N4EU variable speed drive, ATV950, 1.5kW/2HP -380/480V, IP55/UL type12, disc.switch
Normally In Stock
Code: 97340
Schneider ATV950U15N4EU IP55 IEC 61800-5-1, IP55 IEC 60529 1.5 kW normal duty, 0.75 kW heavy duty 4 A 4 kHz normal duty, 2.2 A 4 kHz heavy duty With braking chopper, With load break switch Variable speed drive Ethernet/IP, Modbus serial, Modbus TCP 2 HP normal duty, 1 HP heavy du *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Normally Stocked$2677.64
Sale Price
$2231.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
variable speed drive, ATV950, 1.5kW/2HP -380/480V, IP55/UL type12, disc.switch
Specifications
VFD Horsepower Output
2 HP
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
Option Card Slots
Modbus TCP
VFD EMC Filter
Integrated 492.13 Ft (150 M EN/IEC 61800-3 Category C3
VFD EMC Filter
Integrated 164.04 Ft (50 M EN/IEC 61800-3 Category C2
Option Card Slots
Ethernet/IP
VFD Frame Type
Altivar Process ATV900
Option Card Slots
2 RJ45 Ethernet IP/Modbus TCP On The Control Block
Option Card Slots
1 RJ45 Modbus Serial On The Control Block
Drive Type
With Braking Chopper
VFD Frame Type
22276 - ATV930 FRAMES 1 & 2
Drive Type
With Load Break Switch
VFD Amperage Output
4 Amp
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 12
VFD Line
Altivar ATV950
Features
Master-slave load sharing
Hoisting management
High accuracy torque control
Embedded dual-port ethernet
Advanced safety
WebServer — DHCP with native EtherNet
Adaptive Cascade Vector Control - ACVC
Fast Device Replacement
Energy monitoring with current sensor
Achilles L2 cyber-security
High-speed hoisting
Brake logic control
Rope slack handling
DC injection for fast stop
IGBT monitoring
STO: Safe Torque Off
SLS: Safely Limited Speed
SS1: Safe Stop 1
SMS: Safe Maximum Speed
SBC: Safe Brake Control
GDL: Guard Door Locking
Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink
Embedded: Ethernet, Modbus
