Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

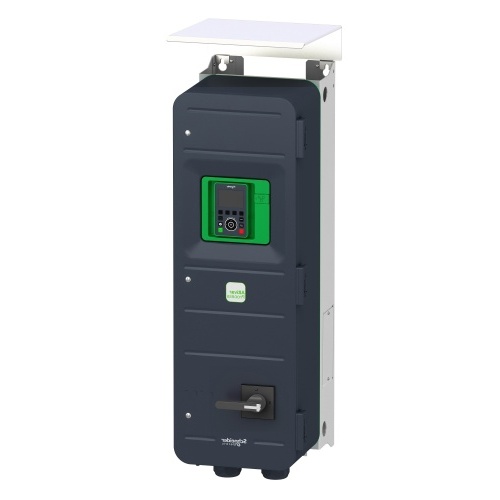

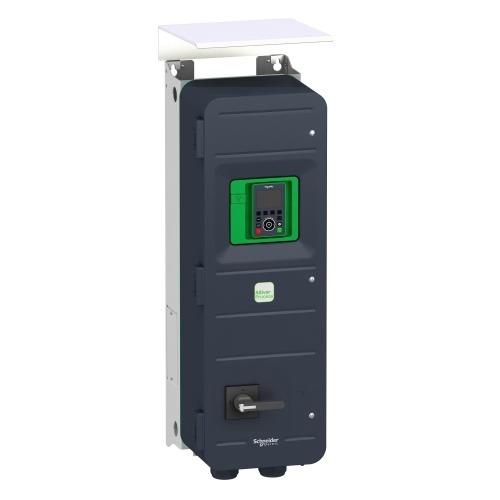

Schneider Electric ATV950D30N4EU variable speed drive, ATV950, 30kW/40HP, 380/480V, IP55/UL type12 -disc.switch
Normally In Stock
Code: 97332
Schneider ATV950D30N4EU IP55 IEC 61800-5-1, IP55 IEC 60529 30 kW normal duty, 22 kW heavy duty 61.5 A 4 kHz normal duty, 46.3 A 4 kHz heavy duty With load break switch, With braking chopper Variable speed drive Ethernet/IP, Modbus serial, Modbus TCP 40 HP normal duty, 30 HP heavy *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
CALL FOR LEAD TIME$9193.08
Sale Price
$7660.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
variable speed drive, ATV950, 30kW/40HP, 380/480V, IP55/UL type12 -disc.switch
Specifications
VFD Horsepower Output
40 HP
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
Option Card Slots
Modbus TCP
VFD EMC Filter
Integrated 492.13 Ft (150 M EN/IEC 61800-3 Category C3
VFD EMC Filter
Integrated 164.04 Ft (50 M EN/IEC 61800-3 Category C2
Option Card Slots
Ethernet/IP
VFD Frame Type
Altivar Process ATV900
Option Card Slots
2 RJ45 Ethernet IP/Modbus TCP On The Control Block
Option Card Slots
1 RJ45 Modbus Serial On The Control Block
Drive Type
With Braking Chopper
VFD Frame Type
22278 - ATV930 FRAMES 5 & 6
Drive Type
With Load Break Switch
VFD Amperage Output
61.5 Amp
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 12
VFD Line
Altivar ATV950
Features
Master-slave load sharing
Hoisting management
High accuracy torque control
Embedded dual-port ethernet
Advanced safety
WebServer — DHCP with native EtherNet
Adaptive Cascade Vector Control - ACVC
Fast Device Replacement
Energy monitoring with current sensor
Achilles L2 cyber-security
High-speed hoisting
Brake logic control
Rope slack handling
DC injection for fast stop
IGBT monitoring
STO: Safe Torque Off
SLS: Safely Limited Speed
SS1: Safe Stop 1
SMS: Safe Maximum Speed
SBC: Safe Brake Control
GDL: Guard Door Locking
Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink
Embedded: Ethernet, Modbus
