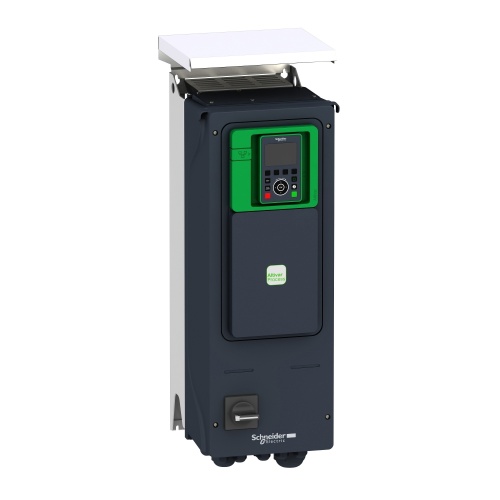

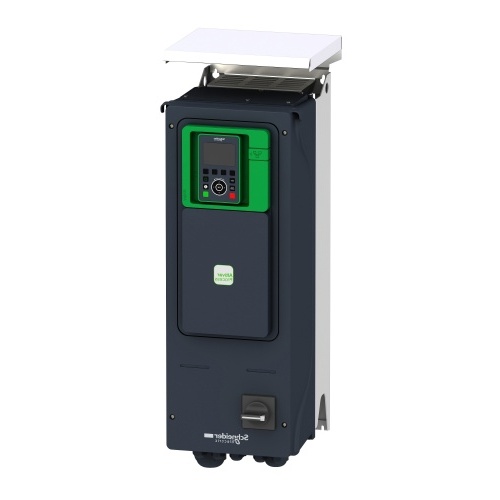

Schneider Electric ATV950D11N4EU variable speed drive, ATV950, 11kW/15HP, 380/480V, IP55/UL type12, disc.switch
Normally In Stock
Code: 97326
Schneider ATV950D11N4EU IP55 IEC 61800-5-1, IP55 IEC 60529 11 kW normal duty, 7.5 kW heavy duty 23.5 A 4 kHz normal duty, 16.5 A 4 kHz heavy duty With load break switch, With braking chopper Variable speed drive Modbus serial, Modbus TCP, Ethernet/IP 15 HP normal duty, 10 HP heav *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Normally Stocked$4669.81
Sale Price
$3891.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
variable speed drive, ATV950, 11kW/15HP, 380/480V, IP55/UL type12, disc.switch
Specifications
VFD Horsepower Output
15 HP
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
Option Card Slots
Modbus TCP
VFD EMC Filter
Integrated 492.13 Ft (150 M EN/IEC 61800-3 Category C3
VFD EMC Filter
Integrated 164.04 Ft (50 M EN/IEC 61800-3 Category C2
Option Card Slots
Ethernet/IP
VFD Frame Type
22277 - ATV930 FRAMES 3 & 4
VFD Frame Type
Altivar Process ATV900
Option Card Slots
2 RJ45 Ethernet IP/Modbus TCP On The Control Block
Option Card Slots
1 RJ45 Modbus Serial On The Control Block
Drive Type
With Braking Chopper
Drive Type
With Load Break Switch
VFD Amperage Output
23.5 Amp
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 12
VFD Line
Altivar ATV950
Features
Master-slave load sharing
Hoisting management
High accuracy torque control
Embedded dual-port ethernet
Advanced safety
WebServer — DHCP with native EtherNet
Adaptive Cascade Vector Control - ACVC
Fast Device Replacement
Energy monitoring with current sensor
Achilles L2 cyber-security
High-speed hoisting
Brake logic control
Rope slack handling
DC injection for fast stop
IGBT monitoring
STO: Safe Torque Off
SLS: Safely Limited Speed
SS1: Safe Stop 1
SMS: Safe Maximum Speed
SBC: Safe Brake Control
GDL: Guard Door Locking
Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink
Embedded: Ethernet, Modbus
