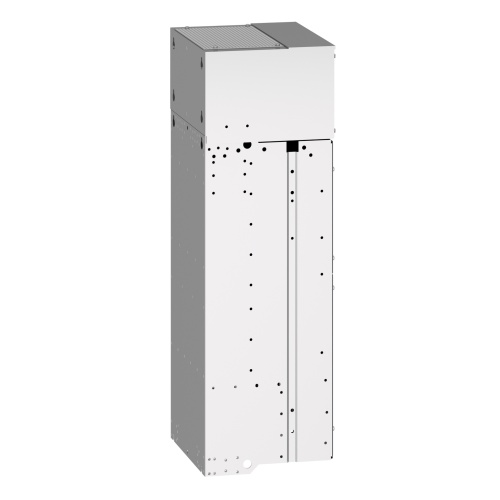

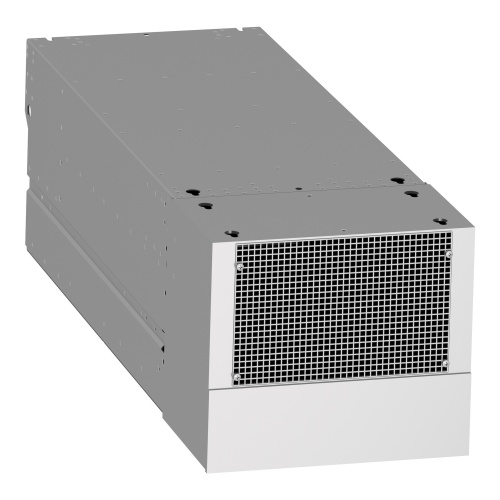

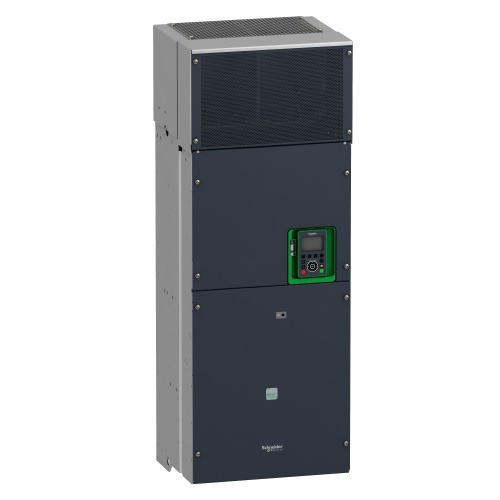

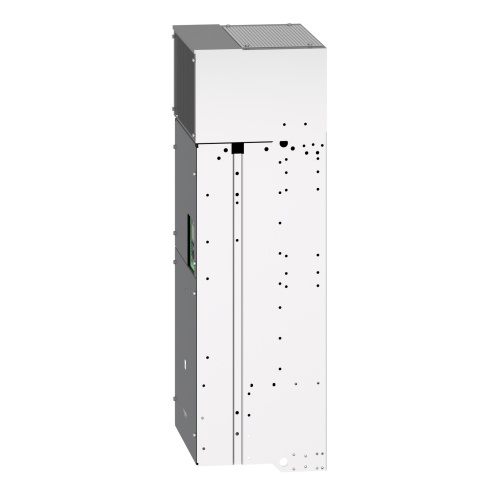

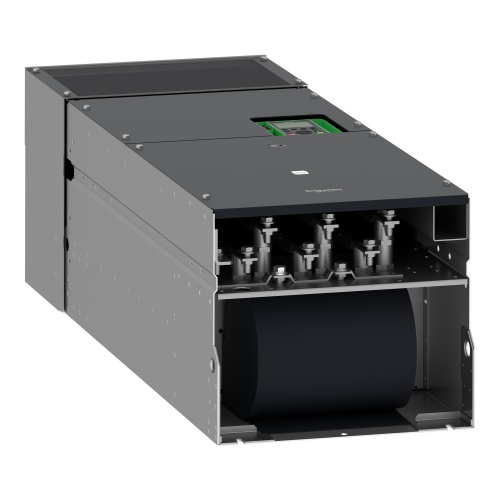

Schneider Electric ATV930C22N4 variable speed drive, ATV930, 220kW, 400/480V, with braking unit, IP00
Normally In Stock
Code: 97301
Schneider ATV930C22N4 IP00 IEC 61800-5-1, IP00 IEC 60529, IP21 IEC 61800-5-1 with kit VW3A9112, IP21 IEC 60529 with kit VW3A9112 160 kW heavy duty, 220 kW normal duty 302 A 2.5 kHz heavy duty, 427 A 2.5 kHz normal duty Standard version, With braking chopper Variable speed drive M *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
CALL FOR LEAD TIME$31567.43
Sale Price
$26306.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
variable speed drive, ATV930, 220kW, 400/480V, with braking unit, IP00
Specifications
VFD Torque
Constant Torque
VFD Application
Compressor
VFD Application
Conveyor
VFD Application
Positive Displacement Pump
VFD Application
Mixer
VFD Application
Hoist
VFD Application
Traction Drive
VFD Horsepower Output
350 HP
Drive Type
Standard Version
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
Option Card Slots
Modbus TCP
VFD EMC Filter
Integrated 164.04 Ft (50 M EN/IEC 61800-3 Category C3
Option Card Slots
Ethernet/IP
VFD Frame Type
Altivar Process ATV900
Option Card Slots
2 RJ45 Ethernet IP/Modbus TCP On The Control Block
Option Card Slots
1 RJ45 Modbus Serial On The Control Block
Drive Type
With Braking Chopper
VFD Frame Type
22278 - ATV930 FRAMES 5 & 6
VFD Amperage Output
302 Amp
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
IP21
VFD Line
Altivar ATV930
Features
Embedded power measurement and energy dashboard
Embedded process monitoring and control
Stop and Go function to reduce energy consumption
