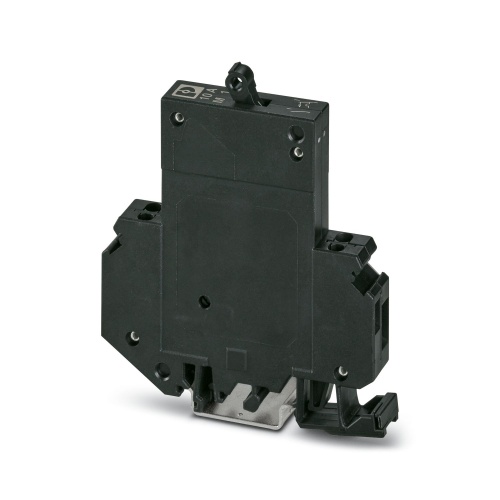

Phoenix Contact 0914523 Thermal-magnetic device circuit breaker TMC 1 M1 100 10,0A
Normally In Stock
Code: 956
Phoenix Contact 0914523 Breaker TMC 1 M1 100 1 Pole 10A
Condition: New
Usually ships Same Day or Next Day$106.76
Sale Price
$88.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0914523 A thermal-magnetic circuit breaker suitable for one pole and has a normal blow function, featuring a single Normally Open (N/O) contact that can be mounted using a universal foot compatible with the NS 32 or NS 35 models.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker UL Rating
UL 1077 Recognized
Breaker Amperage Rating
10 Amp
Breaker Switching Type
Thermomagnetic
Breaker Auxilary Contacts
Single Throw NO
Breaker Number of Poles
Single Pole
Breaker Protection For
All Application Types
Breaker Overcurrent Protection Rating
C Curve 7-10 X Amp Rating
Breaker Trip Speed
Medium Trip
Breaker Unit
Complete Unit
Breaker Contact Type
N-O
Breaker Function
N-O Contact
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Maximum overcurrent protection over long cable paths, thanks to SFB tripping characteristic
Integration in remote signaling concepts, thanks to integrated changeover contact
Reduced installation costs, due to bridgeable device circuit breakers (in the base element)
Protection of 230/240 V AC control voltages, thanks to the M1 characteristic curve
Thermal-magnetic device circuit breakers are a part of the COMPLETE line system
Downloads
Phoenix 0914523 CAD data International.dxfPhoenix 0914523 CAD data International.pdfPhoenix 0914523 CAD data International.stpPhoenix 0914523 CAD Drawing.dxfPhoenix 0914523 Flyer English.pdfPhoenix 0914523 Manufacturers declaration English.pdfPhoenix 0914523 Manufacturers declaration International.pdfPhoenix 0914523 Spec Sheet.pdfPhoenix 0914523 Tender Text English.zipPhoenix 0914523 User Manual.pdfPhoenix 0914523 Various English.pdf
