Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

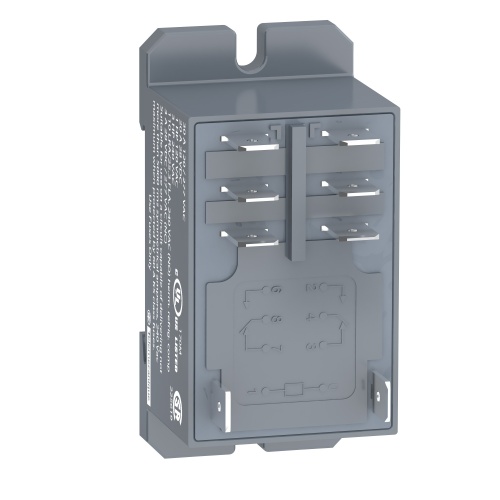

Schneider Electric RPF2BB7 power relay plug-in - Zelio RPF - 2 CO - 24 V AC - 30 A
Normally In Stock
Code: 95445
Schneider RPF2BB7 2 C/O Power Flat Silver tin oxide Without lockable test button DIN rail, Panel 24 V AC 250 V IEC 25 A -40-131 °F (-40-55 °C relays side by side without a gap, 30 A -40-131 °F (-40-55 °C 13 mm gap between two relays 30 A 277 V AC NO UL, 20 A 28 V DC NO UL, 30 A 2 (MUST BUY IN PACKS OF 10)
Condition: New
Normally Stocked$20.27
Sale Price
$16.89
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
power relay plug-in - Zelio RPF - 2 CO - 24 V AC - 30 A
Specifications
Component
Relay Plug-In-Electromagnetic
Manufacturer
Schneider Electric
Coil Voltage Rating
12-24 Volt
Relay Load Voltage AC Rating
24 Volt
Coil Voltage Max
250 Volt
Relay Load Amperage
30 Amp @ 277 Volt
Relay Load Amperage
20 Amp @ 28 Volt
Relay Load Amperage
30 Amp @ 250 Volt
Relay Load Amperage
25 Amp @ 28 Volt
Relay Load Amperage
3 Amp @ 277 Volt
Relay Load Amperage
3 Amp @ 28 Volt
Relay Load Amperage
3 Amp @ 250 Volt
Features
Flexibility to meets most industrial applications
Pre-assembled to simplify selection and installation
Simplicity of use with test button and visual indicators
Mechanical durability of 10 million cycles
Electrical durability of 1,00,000 cycles
Code: 95445
Schneider Electric RPF2BB7 power relay plug-in - Zelio RPF - 2 CO - 24 V AC - 30 A
$20.27
Sale Price
$16.89
