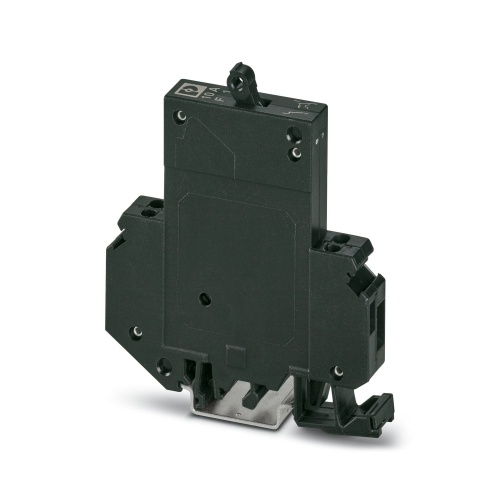

Phoenix Contact 0914345 Thermal-magnetic device circuit breaker TMC 1 F1 200 10,0A
Normally In Stock
Code: 924
Phoenix Contact 0914345 Breaker TMC 1 F1 200 1 Pole 10A
Condition: New
Usually ships Same Day or Next Day$101.80
Sale Price
$84.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0914345 A thermal-magnetic circuit breaker designed for single-phase applications is a fast-acting device that can quickly interrupt an electrical circuit in the event of an overload or short-circuit. This type of circuit breaker features one normally closed (N/C) contact and comes equipped with a universal foot that allows it to be mounted on either NS 32 or NS 35 frames, making it versatile for various mounting requirements.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker UL Rating
UL 1077 Recognized
Breaker Amperage Rating
10 Amp
Breaker Switching Type
Thermomagnetic
Breaker Auxilary Contacts
Single Throw NC
Breaker Number of Poles
Single Pole
Breaker Trip Speed
Fast Trip
Breaker Protection For
Sensitive Equipment
Breaker Overcurrent Protection Rating

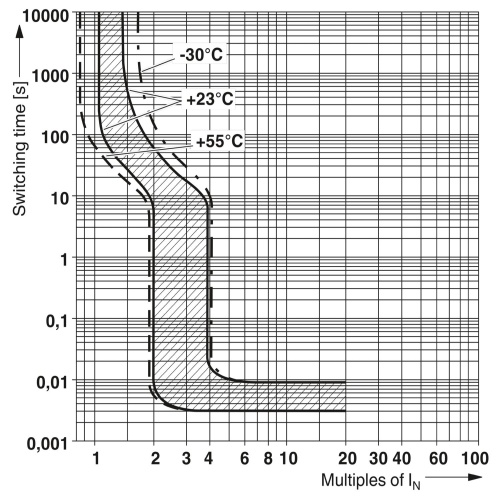

B Curve 3.2-4.8 X Amp Rating
Breaker Unit
Complete Unit
Breaker Voltage Rating
65 VDC
Breaker Contact Type
N-C
Breaker Function
N-C Contact
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Maximum overcurrent protection over long cable paths, thanks to SFB tripping characteristic
Integration in remote signaling concepts, thanks to integrated changeover contact
Reduced installation costs, due to bridgeable device circuit breakers (in the base element)
Protection of 230/240 V AC control voltages, thanks to the M1 characteristic curve
Thermal-magnetic device circuit breakers are a part of the COMPLETE line system
Downloads
Phoenix 0914345 CAD data International.dxfPhoenix 0914345 CAD data International.pdfPhoenix 0914345 CAD data International.stpPhoenix 0914345 CAD Drawing.dxfPhoenix 0914345 Flyer English.pdfPhoenix 0914345 Manufacturers declaration English.pdfPhoenix 0914345 Manufacturers declaration International.pdfPhoenix 0914345 Spec Sheet.pdfPhoenix 0914345 Tender Text English.zipPhoenix 0914345 User Manual.pdfPhoenix 0914345 Various English.pdf
