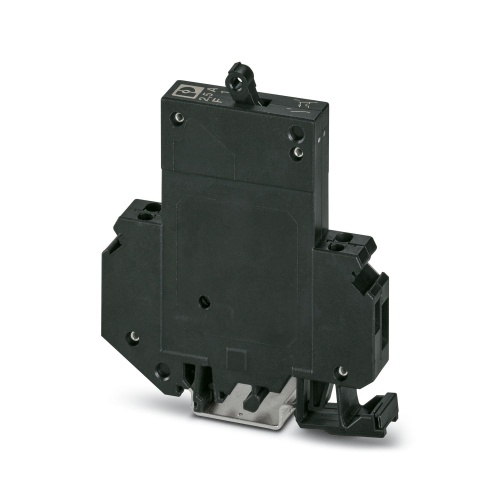

Phoenix Contact 0914109 Thermal-magnetic device circuit breaker TMC 1 F1 100 2,5A
Normally In Stock
Code: 906
Phoenix Contact 0914109 Breaker TMC 1 F1 100 1 Pole 2.5A
Condition: New
Usually ships Same Day or Next Day$106.76
Sale Price
$88.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0914109 A thermal-magnetic device circuit breaker with a single-throw switch features a screw-based connection method and can handle up to 2.5 amps of nominal current, responding quickly in fast blow mode F1 to trip and disconnect the circuit when tripped, utilizing an automatic fuse type mounted on a DIN rail with a standard 35 mm profile and rated for 2.5 amps of continuous current.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker UL Rating
UL 1077 Recognized
Breaker Switching Type
Thermomagnetic
Breaker Amperage Rating
2.5 Amp
Breaker Auxilary Contacts
Single Throw NO
Breaker Number of Poles
Single Pole
Breaker Trip Speed
Fast Trip
Breaker Protection For
Sensitive Equipment
Breaker Overcurrent Protection Rating

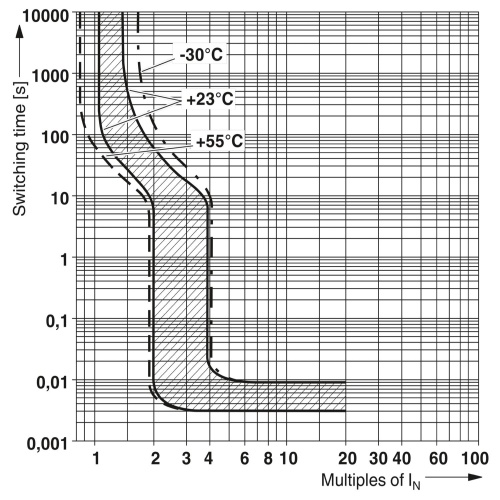

B Curve 3.2-4.8 X Amp Rating
Breaker Unit
Complete Unit
Breaker Voltage Rating
65 VDC
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Maximum overcurrent protection over long cable paths, thanks to SFB tripping characteristic
Integration in remote signaling concepts, thanks to integrated changeover contact
Reduced installation costs, due to bridgeable device circuit breakers (in the base element)
Protection of 230/240 V AC control voltages, thanks to the M1 characteristic curve
Thermal-magnetic device circuit breakers are a part of the COMPLETE line system
Downloads
Phoenix 0914109 CAD data International.dxfPhoenix 0914109 CAD data International.pdfPhoenix 0914109 CAD data International.stpPhoenix 0914109 CAD Drawing.dxfPhoenix 0914109 Flyer English.pdfPhoenix 0914109 Manufacturers declaration English.pdfPhoenix 0914109 Manufacturers declaration International.pdfPhoenix 0914109 Spec Sheet.pdfPhoenix 0914109 Tender Text English.zipPhoenix 0914109 User Manual.pdfPhoenix 0914109 Various English.pdf
