Typical applications include manufacturing plants, storage areas, warehouses, platforms, loading docks, walkways/catwalks, stairwells, tunnels, pipe racks, vessel lighting, food processing facilities and parking garages

Compact, light weight, low profile design is suited for low mounting heights

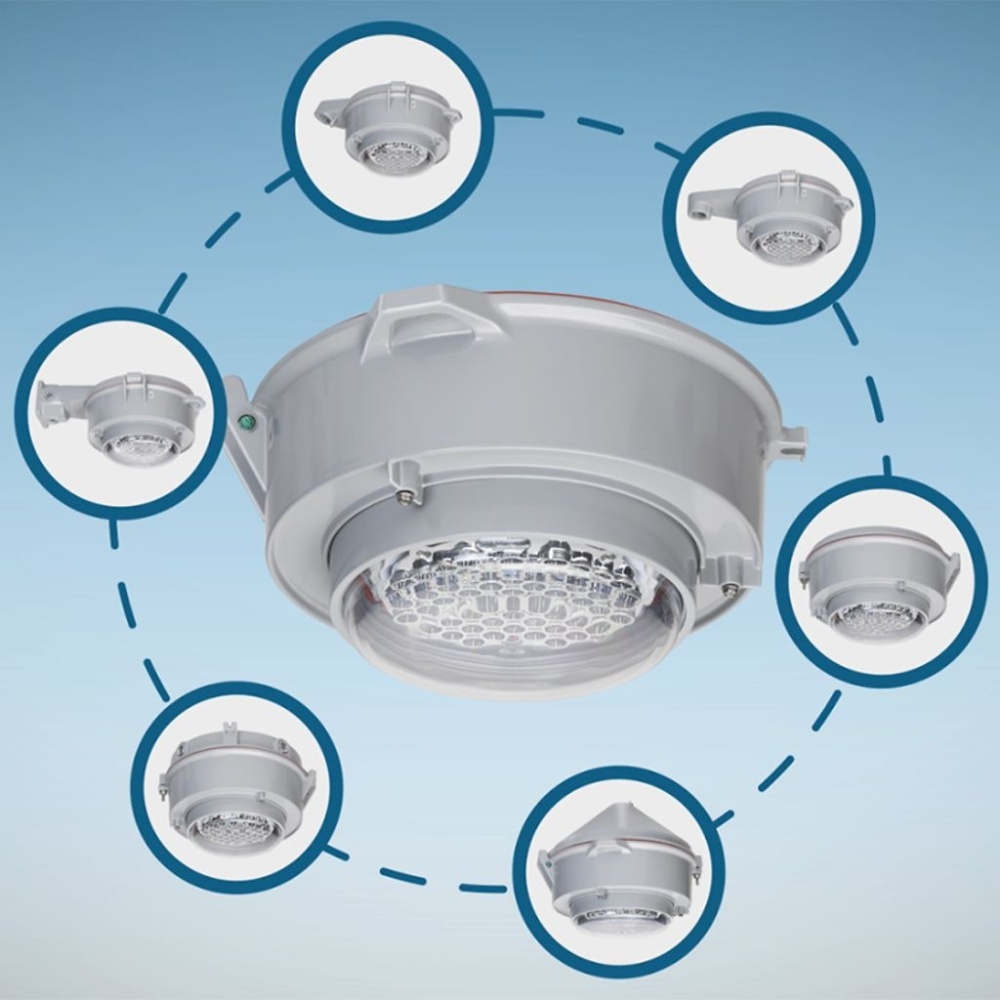

Seven standard mounting hood designs allow for mounting in any location. Uses the same mounting hoods as the Mercmaster III HID

Customize to the application requirements with four different globe options: clear and diffused polycarbonate, clear glass, or prismatic glass refractor

Three light output levels on Standard version for retrofit of HID fixtures up to 175 Watts. Emergency version provides up to 1450 lumens illumination for 90 minutes of emergency lighting with clear lens or 900 lumens illumination for 180 minutes of emergency lighting

Hinge has high lip for added safety during installation and servicing. Hinge and bolt construction assures 360° compression at all points on fixture housing gasket for positive sealing. Swing away design of captive bolt and nut simplifies servicing

Standard screw-type terminal block can accept UL/CSA 26-10 AWG wire (Standard version only) or UL/CSA 24-10 AWG wire (Emergency version only)

NPT threads standard

Emergency version features functional diagnostic test self-initiates every 14 days after initial start up. Duration test is automatically performed once per year

Green and Red LED lamps indicate charging status and provide fault warning on Emergency version

Simple quick disconnect connector disconnects power between LEDs and battery management module to allow maintenance on Emergency version
