Available in 30, 60, 100, 150, 200, and 400 Amp units

Circuit breaking: in 30, 60, 100, and 200 Amp units, any arcing created as line and load terminals disengage is safely confined deep within terminal cavities. Plugs may be withdrawn in an emergency under full rated loads without separate disconnect switch

Positive polarization: only plugs and receptacles of same style, number of poles and ampere rating can be used together

Ambient temperature range of -25 °C to 40 °C (-13 °F to 104 °F)

Available in two grounding styles: Style 1 (shell only) and Style 2 (shell and extra pole)

Controlled length contacts ensure that ground makes first and breaks last for added safety

Contacts exert constant pressure along entire contact surface and provide electrical continuity

Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking

Neoprene bushing compressed by cable collar prevents entrance of water. Bushing is highly resistant to hydrocarbon deterioration and is self-extinguishing

30, 60, 100, and 150 Amp Powertite™ plugs also suitable for classified locations when used with Appleton EBR, EBRH, JBR, MD2SR, FSQC, ID2SR, or DBR hazardous interlocked receptacles

Accessories– NEMA 4X water and dust tight caps for 30A-150A plugs

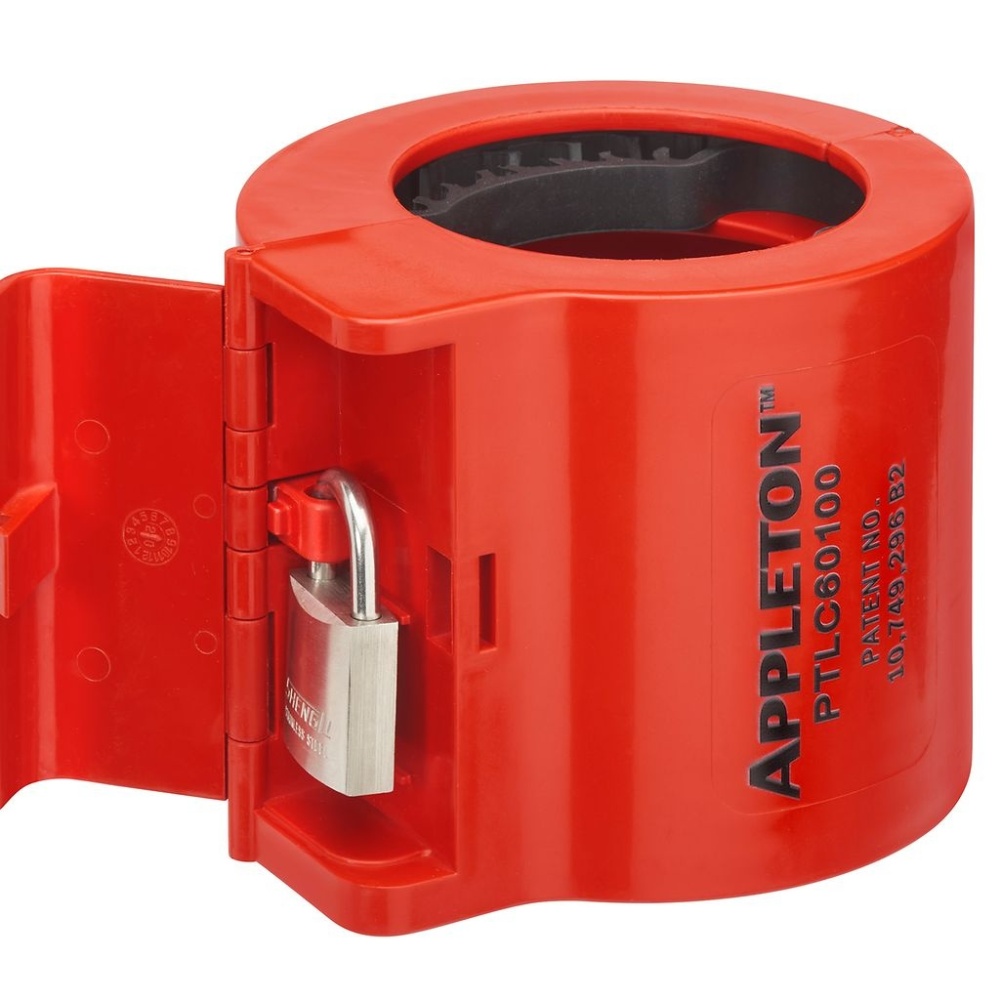

Locking collar to secure 60A or 100A plug/connector connections
