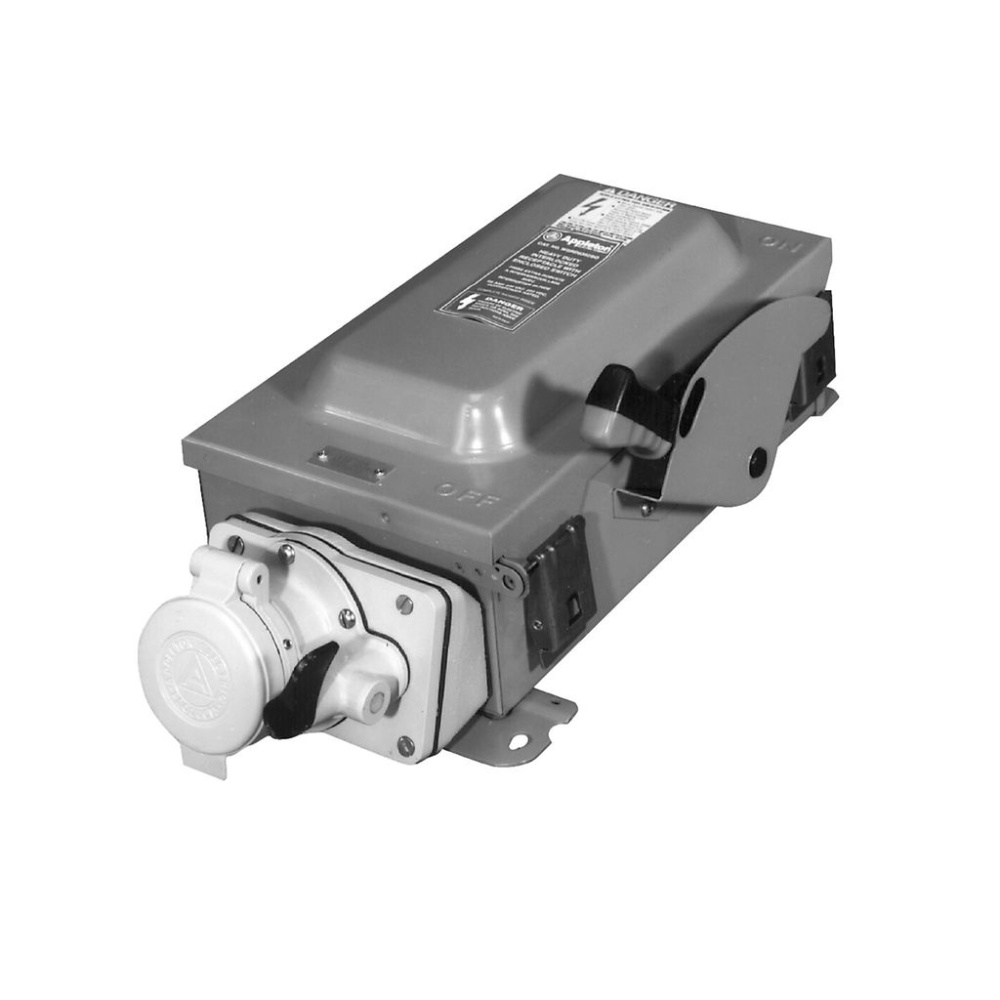

For use where an interlocked disconnect switch is desired to control a Powertite™ receptacle and insertion or removal of plug

Dead front design: receptacle is not energized until plug is fully inserted and switch is engaged. Unit is equipped with defeatable door interlock which allows emergency access when switch is energized

Square D™ F­Series operating mechanism designed to endure at least three times the number of operations required by NEMA and UL standards

Insulated, dual-color polymer operating handle clearly indicates the switch being energized. Ergonomically designed handle is made of high-impact polymer material for exceptional ruggedness, durability and corrosion resistance

Short circuit withstand rated to 200,000 RMS symmetrical Amps (Class R and J Fusing)

Available in fused or non-fused versions. Eaton™ switches arragned for Class H fusing and Class H, K on Square D™ switches. Products can be retrofitted with Class R or J fuses.

Utilizes Style 2 (shell and extra pole) grounding and 3-wire, 4-pole receptacle wiring

Spring door standard and screw cap provided at no additional cost to meet NEMA 3, 3R, 4, 4X applications

Cover can be padlocked closed. Operating handle can be locked in the OFF or ON position

Window versions provide visibility of fuse blades and fuse indicators for maintenace personnel without having to open cover

Epoxy powder coating on the inside and outside of the recetpacle provides addede corrosion protection

Auxillary switch contacts can be added for increased process control where flexibility is needed
