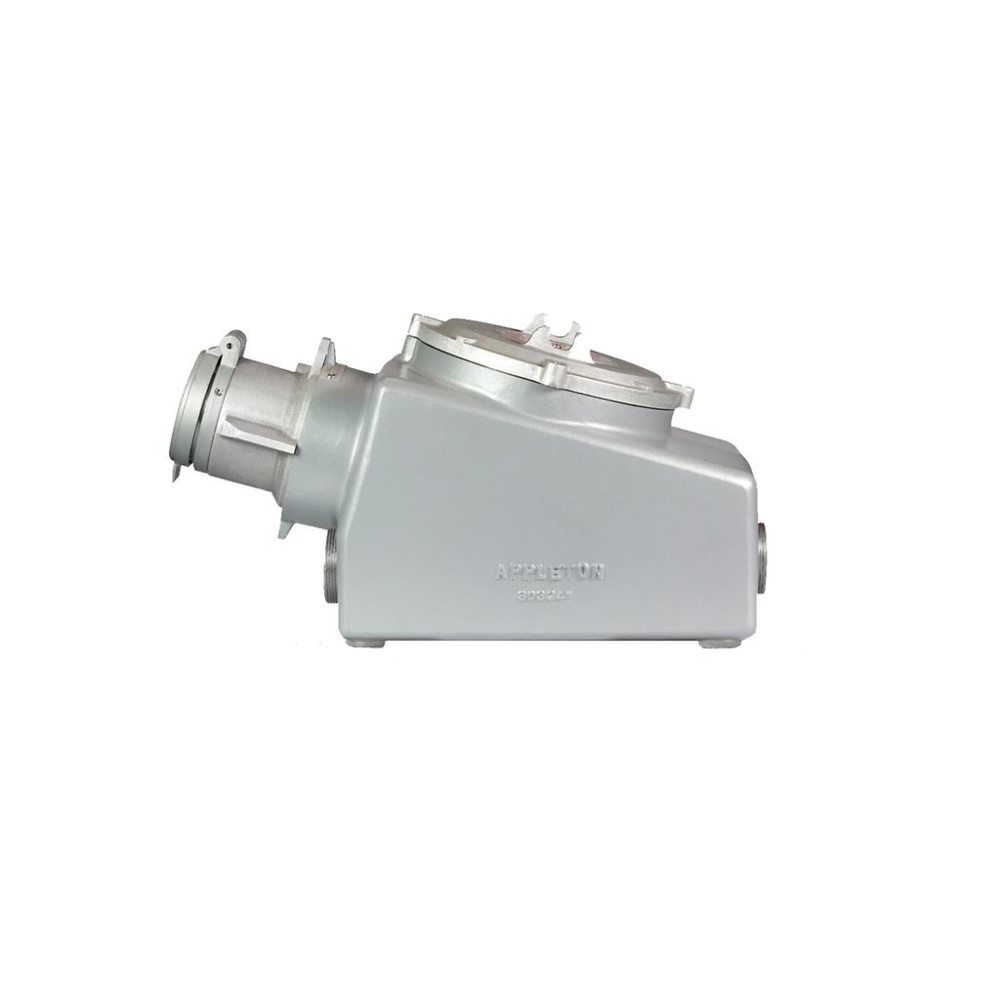

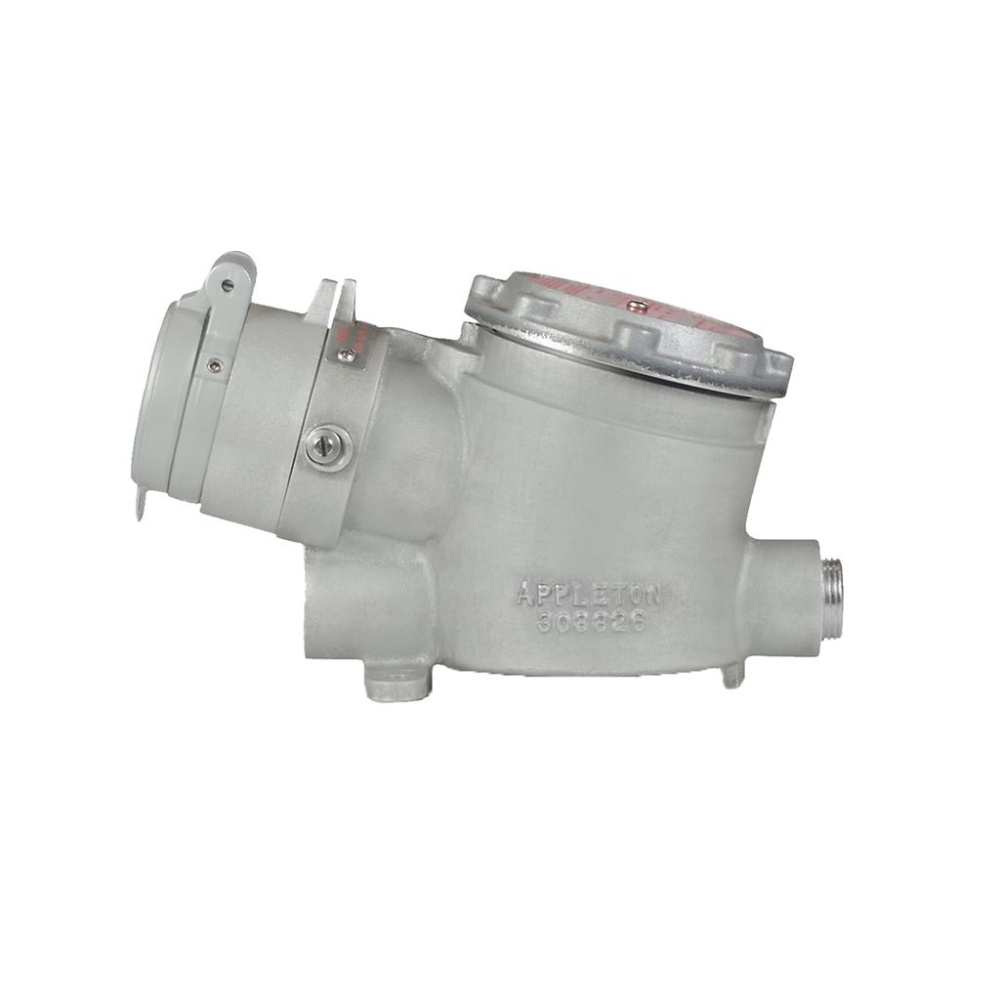

Appleton™ FSQC5640AUX RCPT 60A 3W4P 1-1/2 W/ AUX
Normally In Stock
Code: 871910
Appleton™ FSQC5640AUX RCPT 60A 3W4P 1-1/2 W/ AUX
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$3324.25
Sale Price
$2770.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Appleton™ FSQC5640AUX RCPT 60A 3W4P 1-1/2 W/ AUX
Specifications
Component
Receptacle
Manufacturer
Appleton
Features
Interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum, three pole, non-fused motor circuit switch
To operate, insert the plug and turn receptacle collar to the ON position. To remove the plug, turn the plug to the OFF position and pull the plug out
Style 2 (shell and extra pole) grounding
Spring door keeps dust out of receptacle when plug is not in use. Screw cover also supplied free of charge for NEMA 4 applications.
Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
Insulators provide superior dielectric and mechanical strength and lowest arc tracking
Contacts have beryllium copper wire springs
Tapped NPT conduit openings at top and bottom: 30 Amp 3/4#8221
, 60 Amp 1-1/2#8221
, 100 Amp 2#8221
Large housing provides ample wiring room
Powertite™ Series plug fits hazardous location FSQC receptacles
