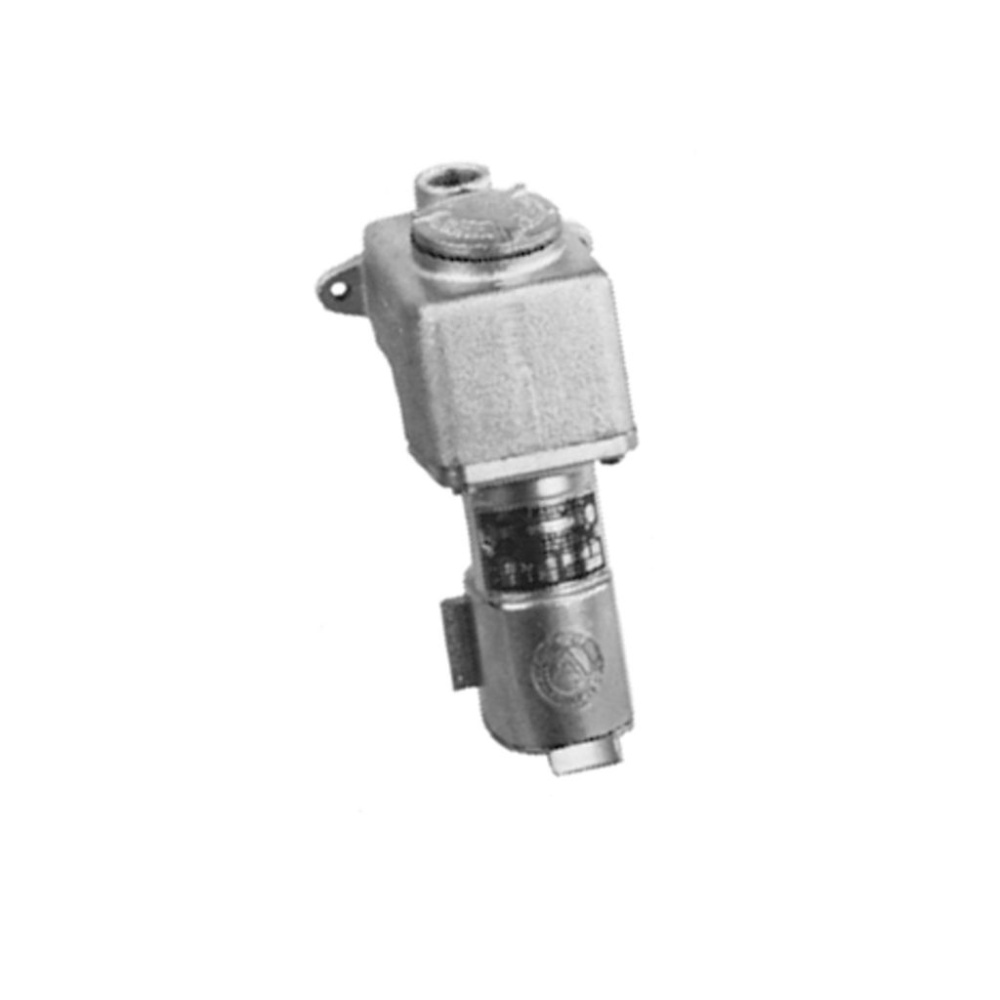

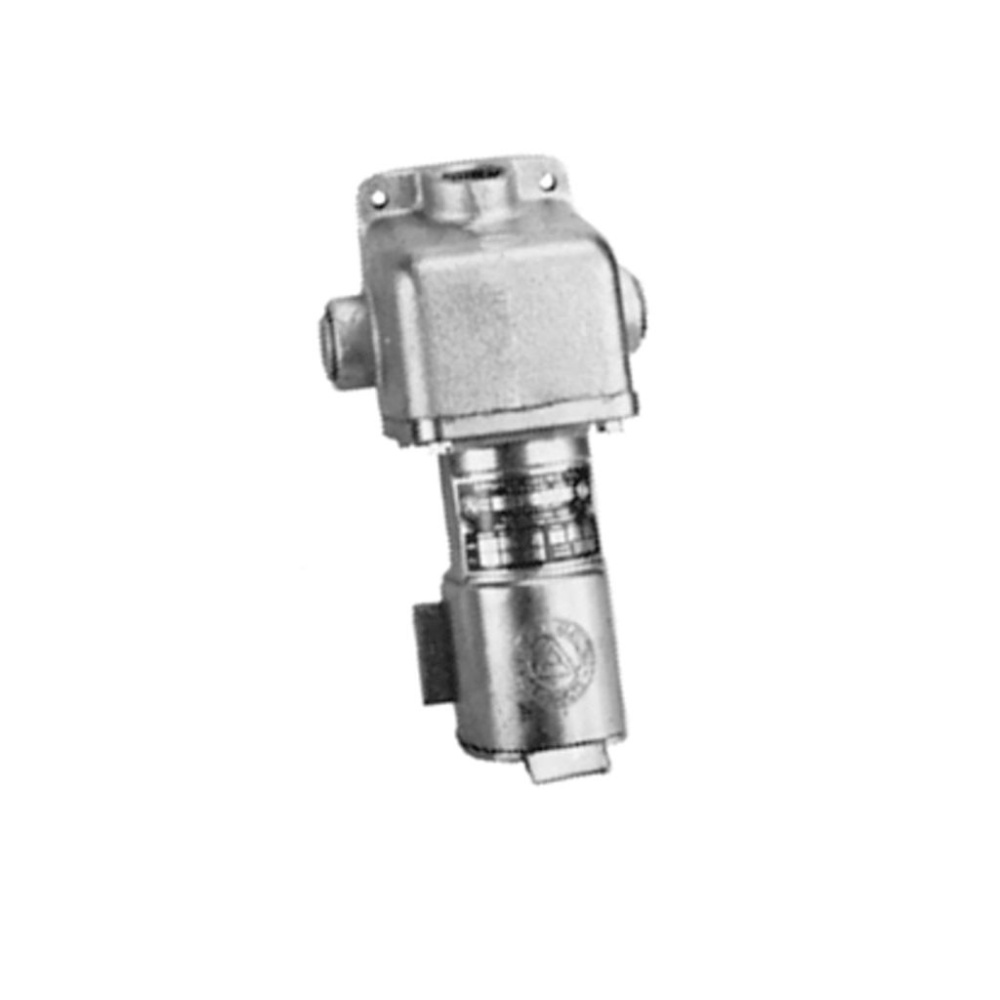

Appleton™ CERI6034 RECEPT.INTER.3W4P 60A CES CESD
Normally In Stock
Code: 871809
Appleton™ CERI6034 RECEPT.INTER.3W4P 60A CES CESD
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$1149.34
Sale Price
$957.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Appleton™ CERI6034 RECEPT.INTER.3W4P 60A CES CESD
Specifications
Component
Receptacle
Manufacturer
Appleton
Features
Factory sealed. No external seals required. Arcing is safely confined to receptacle interior
Energized receptacle contacts deeply recessed to reduce danger of accidental touching
Style 2 (shell and extra pole) grounding
Spring door keeps dust out of receptacle when plug is not in use
Unique design brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
Contacts have beryllium copper wire springs
Plug mechanical cable clamps prevent strain on cables
they meet or exceed UL strain relief pull-out requirements
Neoprene bushing compressed by cable collar prevents entrance of water
Insulators provide superior dielectric and mechanical strength and lowest arc tracking
Smooth, rounded integral bushing in each hub protects conductor insulation
Delayed action construction. To operate, insert plug to first stop, move Slide-Lok™ slide to right and push plug fully forward
CPH plug fits Powertite™ Series hazardous location receptacles
