Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

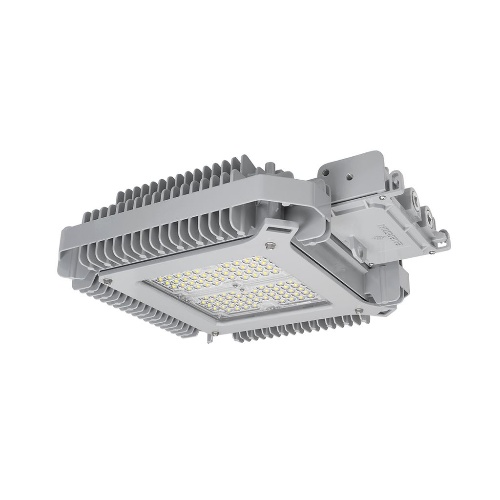

Appleton™ IBHLL1CFMNBUFS IBHL,24KLM,CW,FG,MED,BU,F,S
Normally In Stock
Code: 853298
Appleton™ IBHLL1CFMNBUFS IBHL,24KLM,CW,FG,MED,BU,F,S
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$5055.16
Sale Price
$4212.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Appleton™ IBHLL1CFMNBUFS IBHL,24KLM,CW,FG,MED,BU,F,S
Specifications
Manufacturer
Appleton
Component
Industrial Baymaster™ LED Luminaire
Features
Typical applications include manufacturing plants, storage areas, warehouses, platforms, loading docks, food processing facilities and parking garages
The Quick Mount Pendant System. Unique to the industry, this compact luminaire offers a quick-mount pendant system which makes for faster and safer installations. Just pre-wire the mounting hood, line the arrows up, and lock into place, the need for a multi-person installation team disappears.
Secondary Optics. Baymaster stands out with secondary optics placed over the LED to help shape the light, allowing for a variety of applications. With the choice of aisle, very narrow, narrow, medium, or wide beam spreads, optimal light distribution in challenging areas such as aisleways and walkways becomes possible.
Rugged and Durable Housing. Mounting hoods and bodies are made from copperfree aluminum with a baked epoxy-clad finish, electrostatically applied for complete uniform protection. Superior thermal design that is shock and impact resistant translates to a longer luminaire life.
The rugged and durable construction of the Baymaster is ideal for harsh industrial conditions. Heavy duty, high temperature silicone rubber gaskets. Captive fasteners secure one piece lens.
Large Lumen Output Range and Color Options. With 6 lumen output ranges (9,500, 15,000, 19,500, 24,000, 30,000, and 38,000K) to choose from, you'll have flexibility for lots of different mounting heights and illumination levels. Three different color options (5000K cool white, 4000K neutral white and 3000K CCT warm white) give you a choice and superior lighting quality.
Replaceable Components. For ease of maintenance the Baymaster offers a field replaceable LED driver and lens cover.
Options and Upgrades. The frosted glass lens reduces glare, creating a more pleasant and comfortable working environment. Additional surge protection option allows for a robust 10kV of surge protection. An alternative mounting system offers chain mounting.
6 kV surge protection included and an extended 10 kV surge protection option available.
Wide Ambient Temperature Range. With an ambient temperature range of -40°C to +65°C (-40°F to +149°F), you can use the luminaire in almost every environment, from Alaska to the Middle East and every place in between.
Choice of Input Voltages: 120-277 Vac 50/60 Hz, 125-300 Vdc or 347-480 Vac 50/60 Hz
Two 3/4" NPT entries provided. (Two close up plugs provided when quick mount pendant system is ordered).

Code: 853298
Appleton™ IBHLL1CFMNBUFS IBHL,24KLM,CW,FG,MED,BU,F,S
$5055.16
Sale Price
$4212.63
