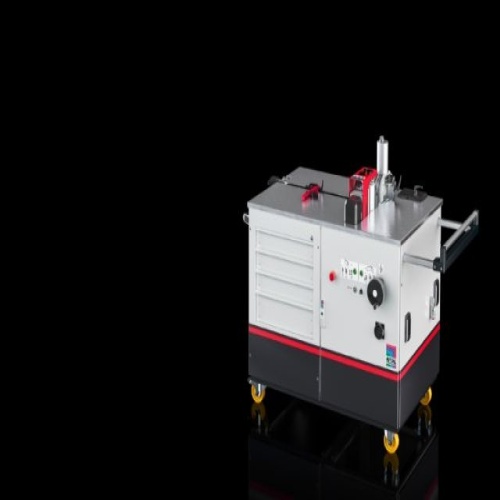

Rittal 4055800 Busbar processing CW 120-M
Normally In Stock
Code: 842430
Mobile busbar machining. The CW 120 – M mobile station is ideal for bending, punching and cutting busbars.
Condition: New
Usually ships Same Day or Next DayALL RITTAL ORDERS THAT EXCEED 50 LBS WILL SHIP FREIGHT.
*NON-CANCELLABLE, NON-RETURNABLE*
$57678.40
Sale Price
$48065.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

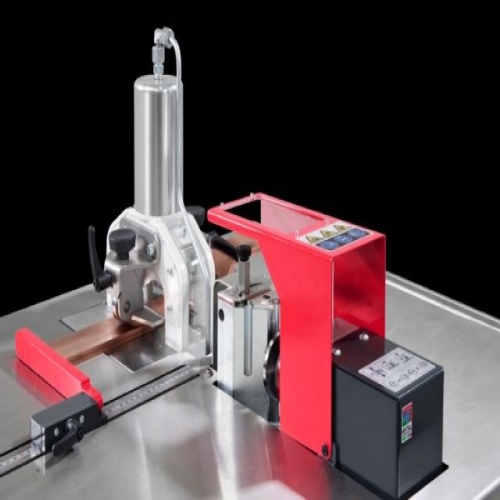

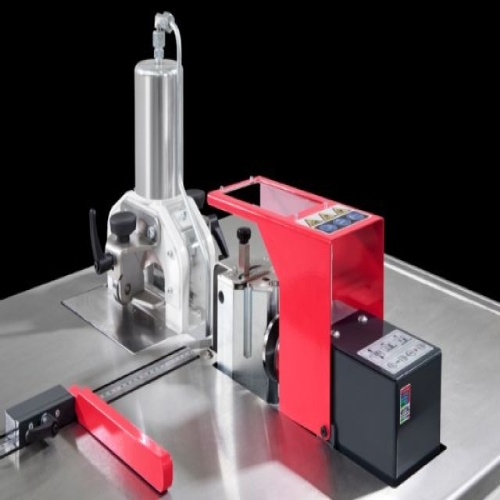

The mobile product solution for processing busbars is suitable for precise, quick, and ergonomic bending, punching, and cutting of busbars directly at the relevant workstation. The integrated precision laser makes the cutting and bending process easier.
Specifications
Manufacturer
Rittal
Component
Busbar Processing
Features
Supply Includes: Busbar machining, mobile CW 120-M Foot-switch
Benefits: High level of bending and punching accuracy Simple tool changes Flexible use in the workshop
Note: With a Z bend, the length of the short side depends on the material thickness For punching, slots of up to a max. of 21 x 18 mm are also supported Slot tools available on request We reserve the right to make technical modifications
Design: Electric protractor Mandrel R10 Bending die External 230 V power inlet Pull-out side support extension for long rails External hydraulic connection for almost all machining options 4 castors (2 lockable) Drawer pull-outs Integral hydraulic pump Laser pointer (auxiliary laser), beam power laser class 1 Length end stop, pull-out
