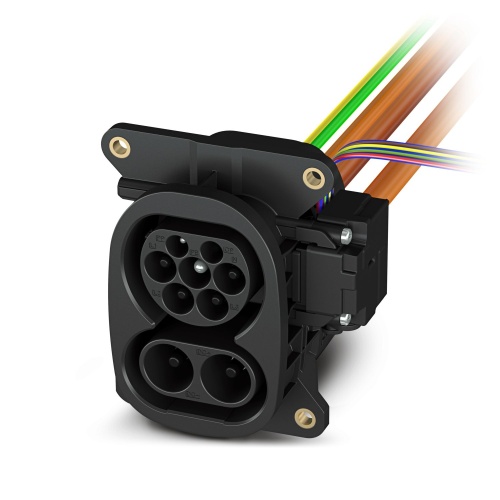

Phoenix Contact 1720098 Vehicle charging inlet CHARX T2HBI12-DC375-2,0C2
Normally In Stock
Code: 836156
Phoenix 1720098 Vehicle charging inlet CHARX T2HBI12-DC375-2,0C2
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1116.00
Sale Price
$930.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

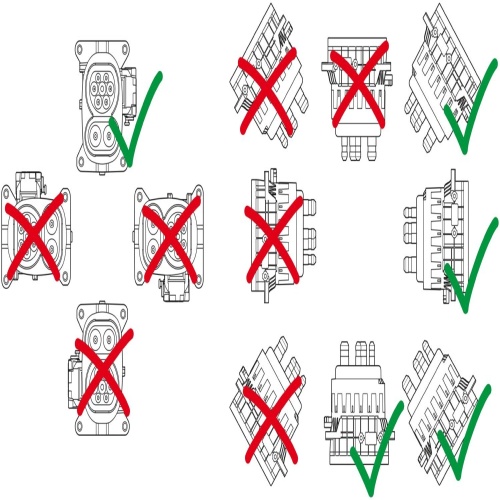

Phoenix Contact 1720098 The CHARX connector features universal compatibility with various types of vehicles and has specifications that cater to high-power applications in boost mode, reaching up to 500A, while maintaining a permanent capacity of 325A at 1000V DC. It consists of single wires with a length of 2 meters and is designed for front and rear mounting using M6 bolts. The connector includes a 12V locking actuator with four positions and comes with a protective cap that meets the IEC standards of 62196-1 and 62196-2, ensuring safe and reliable DC charging operations.
Specifications
Manufacturer
Phoenix Contact
Component
Charging Inlet
Charging Cable Length
1 M
Features
Complete product range
Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001

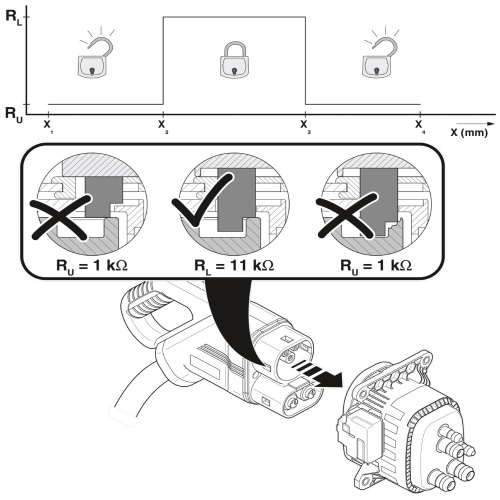

Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
