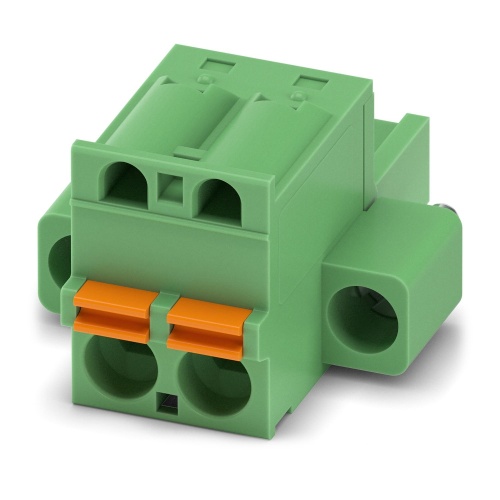

Phoenix Contact 1873207 PCB connector FKC 2,5/ 2-STF-5,08
Normally In Stock
Code: 835461
Phoenix 1873207 PCB connector FKC 2,5/ 2-STF-5,08
Condition: New
Usually ships within 7-14 days. Call for ship time$3.30
Sale Price
$2.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1873207 The PCB connector has a nominal cross section of 2.5 mm² and is green in color with a rated voltage of 320 V at II/IIII conditions. It features a push-in spring connection and can handle up to 12 A of current, using Sn as the contact material and socket as the contact type. The connector has two potentials and one row with two positions and connections, falling under the product range FKC 2,5/..-STF. Its pitch is 5.08 mm and it uses a plug-in system from the COMBICON MSTB 2,5 series, secured by a locking clip and screw flange, packaged in cardboard.
Specifications
Manufacturer
Phoenix Contact
Component
PCB Connector
Number of Connections
2
Number of Positions
2
Connector Voltage
320 Volt
Connector Pitch
5.08 mm
Features
Time saving push-in connection, tools not required
Intuitive operation due to color-coded actuating push button
Quick and convenient testing using integrated test option
Screwable flange for superior mechanical stability
Can be combined with the MSTB 2,5 range
Downloads
Code: 835461
Phoenix Contact 1873207 PCB connector FKC 2,5/ 2-STF-5,08
