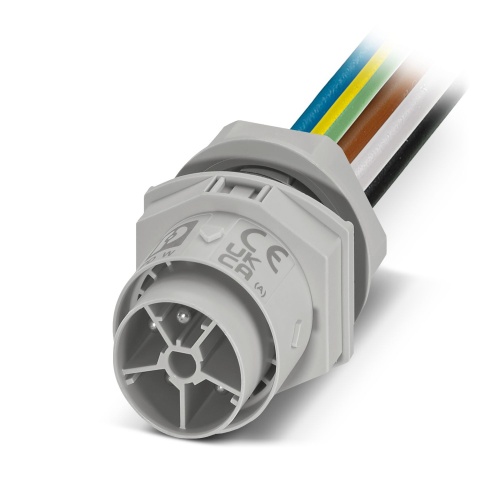

Phoenix Contact 1088704 Panel feed-through IPD W 5P2,5 M 0,5 M25 GY
Normally In Stock
Code: 834408
Phoenix 1088704 Panel feed-through IPD W 5P2,5 M 0,5 M25 GY
Condition: New
Usually ships within 7-14 days. Call for ship time$17.41
Sale Price
$14.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088704 The panel feed-through for connectors in the IPD product family features a single wire connection method with up to 4+PE positions and includes an M25 pin configuration rated for 450 V and 17.5 A current, with a PA (positive) polarity, a gray finish, and is coded as P; it has a cross-sectional area of 2.5 mm² and comes on a 0.5 m long cable.
Specifications
Component
Panel Feed-Through
Manufacturer
Phoenix Contact
Number of Positions
5
Connector Voltage
450 VAC
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
