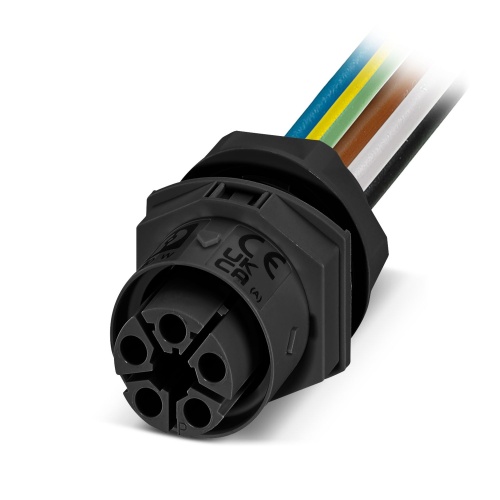

Phoenix Contact 1088698 Panel feed-through IPD W 5P2,5 F 0,5 M25 BK
Normally In Stock
Code: 834407
Phoenix 1088698 Panel feed-through IPD W 5P2,5 F 0,5 M25 BK
Condition: New
Usually ships within 7-14 days. Call for ship time$18.61
Sale Price
$15.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088698 The specified connector product family IPD has a panel feed-through with single wire connections, available in 4 or more positions. It features an M25 socket and is rated for high currents of up to 17.5 A at 450 V, making it suitable for power applications. The connector is colored black and coded as "P" with a conductor cross-sectional area of 2.5 mm2 and a cable length of 0.5 m.
Specifications
Component
Panel Feed-Through
Manufacturer
Phoenix Contact
Number of Positions
5
Connector Voltage
450 VAC
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
