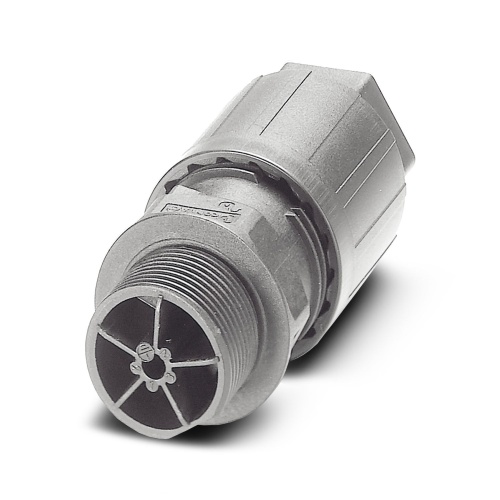

Phoenix Contact 1582575 Panel feed-through QPD W 4PE2,5 9-16 M25 FC GY
Normally In Stock
Code: 834403
Phoenix 1582575 Panel feed-through QPD W 4PE2,5 9-16 M25 FC GY
Condition: New
Usually ships within 7-14 days. Call for ship time$15.35
Sale Price
$12.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1582575 The panel feed-through product features a spade connection or IDC connection with four positions, accommodating various power and signal cables. The connectors have two sizes of pins (1mm2 and 2.5mm2) and can handle up to 20A at 690V. These feed-throughs are available in gray color with a QUICKON nut for easy installation.
Specifications
Component
Panel Feed-Through
Manufacturer
Phoenix Contact
Number of Positions
5
Number of Connections
10
Connector Voltage
690 VAC
Features
The right connection technology for every application: fast IDC contact, easy Push-in Technology, and proven screw connection
3- and 5-pos. versions, enabling a high power density in a compact design
High degree of reliability with robust housings with IP66/IP68/IP69 degree of protection and IK07 shock resistance
Quick and easy assembly without special tools
Flexible power distribution design with fixed and pluggable versions
The electronics are thoroughly protected as the housing does not need to be opened, even when connecting the power supply
