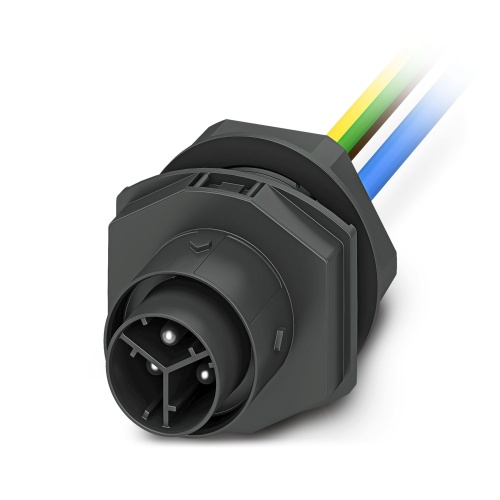

Phoenix Contact 1088694 Panel feed-through IPD W 3P2,5 M 0,5 M25 BK
Normally In Stock
Code: 834398
Phoenix 1088694 Panel feed-through IPD W 3P2,5 M 0,5 M25 BK
Condition: New
Usually ships within 7-14 days. Call for ship time$13.66
Sale Price
$11.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088694 The panel feed-through connector for this product family features single wires in a connection method, with positions available for up to 2 pins and two PE (peaks) connections, utilizing an M25 pin configuration rated at 450 volts and 17.5 amps, with a black outer casing made of PA material, containing a cable with a cross-sectional area of 2.5 mm2, and measuring 0.5 meters in length.
Specifications
Component
Panel Feed-Through
Manufacturer
Phoenix Contact
Number of Positions
3
Connector Voltage
450 VAC
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
