Phoenix Contact 1482516 Connector SACC-M 8MS-3PL-M
Normally In Stock
Code: 834043
Phoenix 1482516 Connector SACC-M 8MS-3PL-M
Condition: New
Usually ships within 7-14 days. Call for ship time$21.82
Sale Price
$18.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

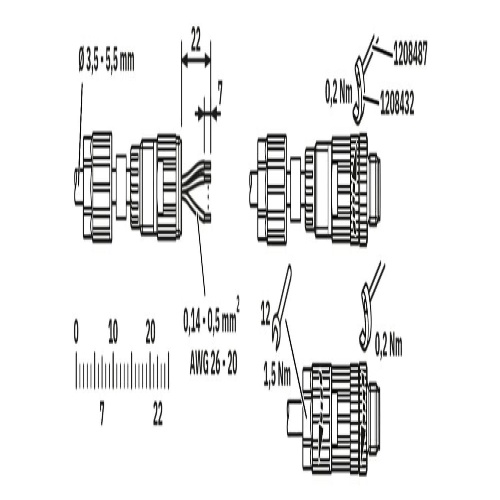

Phoenix Contact 1482516 The connector features a universal design with a 3-position configuration and is an unshielded plug with a straight M8 threading. It utilizes a push-lock spring connection and has a knurled zinc die-cast construction that's nickel-plated, accommodating cable diameters between 3.5mm to 5.5mm.
Specifications
Manufacturer
Phoenix Contact
Connector Voltage
48 VAC
Component
Circular Connector (Cable-Side)

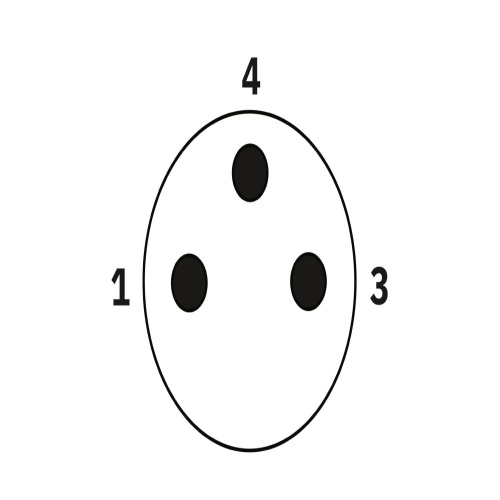

Number of Positions
3
Features
Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Safe use in the field, thanks to a high degree of protection
