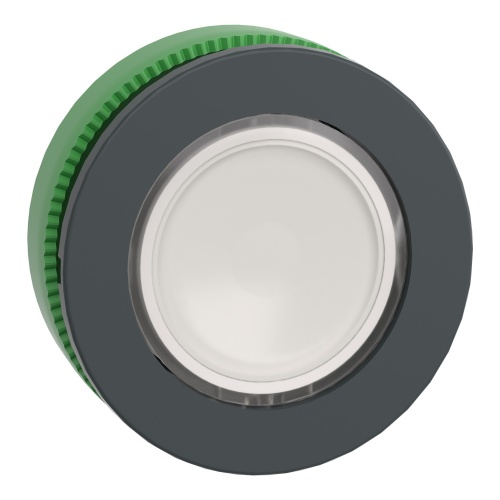

Schneider Electric XB5FW31G5 Illuminated push button flush mounted, plastic, white, 30 mm, integral LED, 110...120 V AC, 1 NO + 1 NC
Normally In Stock
Code: 83274
Schneider XB5FW31G5 spring return 110-120 V AC 50/60 Hz Illuminated push-button White 1 NO + 1 NC Protected LED Integral LED With plain lens Dark gray plastic Round White flush, unmarked Standard contacts Steady 1 Harmony XB5 Built-in-flush 10 A EN/IEC 60947-5-1 1000000 cycles, A
Condition: New
Usually ships Same Day or Next Day$131.21
Sale Price
$109.34
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Illuminated push button flush mounted, plastic, white, Ø30, integral LED, 110...120 V AC, 1 NO + 1 NC
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Color
White
(Switching-Indication) Shape
Round
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Flush
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Plastic
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) IP Rating
IP 69
(Switching-Indication) Current Consumption
14 mAmp
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) IP Rating
IP 67
(Switching-Indication) IP Rating
IP 69K
Manufacturer
Schneider Electric
(Switching-Indication) AC Voltage
110-120 Volt
Component
Modular Push Button
Features
Universal LED block to be used for all colors
Improved color intensity and brightness
Quick and easy assembly and disassembly
