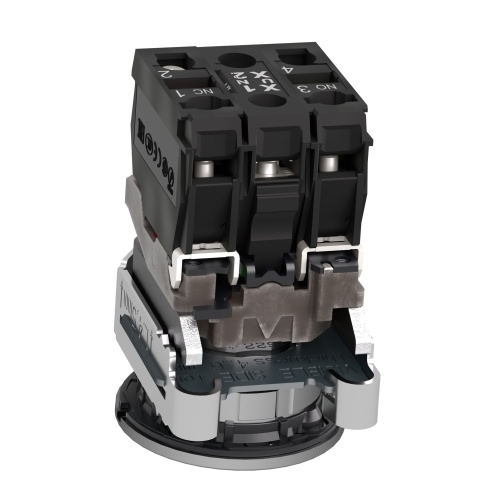

Schneider Electric XB4FW31B5 Illuminated push button flush mounted, metal, white, 30 mm, integral LED, 24 V AC/DC 1 NO + 1 NC
Normally In Stock
Code: 83239
Schneider XB4FW31B5 spring return 24 V AC/DC 50/60 Hz Illuminated push-button 1 NO + 1 NC Protected LED Integral LED With plain lens Chromium plated metal Round White flush Standard contacts Steady Built-in 1 Harmony XB4 Built-in-flush 10 A EN/IEC 60947-5-1 By screws 7.08 lbf.in
Condition: New
Usually ships Same Day or Next Day$138.12
Sale Price
$115.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Illuminated push button flush mounted, metal, white, Ø30, integral LED, 24 V AC/DC 1 NO + 1 NC
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Color
White
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Shape
Round
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Flush
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Illumination
Illuminated
Manufacturer
Schneider Electric
(Switching-Indication) DC Voltage
24 Volt
(Switching-Indication) AC Voltage
24 Volt
Component
Modular Push Button
Features
Compatible with improved color heads
Universal LED block to be used for all colors
Quick and easy assembly and disassembly
