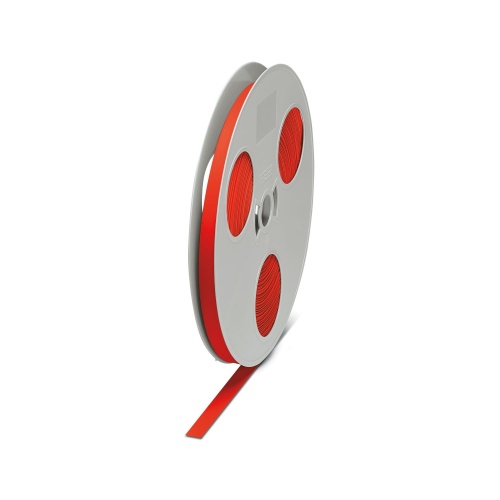

Phoenix Contact 0864101 Shrink sleeve WMS-2 HF 12,7 (EX20)RL RD
Normally In Stock
Code: 82102
WMS-2 HF 12,7 (EX20)RL RD WMS-2 HF 12,7 (EX20)RL RD Phoenix Contact 0864101 red Roll Shrink sleeve
Condition: New
Usually ships Same Day or Next Day$881.26
Sale Price
$734.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0864101 A shrink sleeve with a red, unlabeled design can be customized using various THERMOMARK products such as the THERMOMARK ROLLMASTER or THERMOMARK X1.2, and it features a cable diameter range of 6.4 to 12.7 mm, an unperforated design, and a slide-on mounting type, with one individual label on an 80m long roll that includes a 20mm tall text field with a width of 80000mm.
Specifications
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Width
20 mm
Marking Printing System
THERMOMARK W
Marking Color
Red
Component
Wire Heat Shrink Label
Manufacturer
Phoenix Contact
Marking Lettering Field Size
Continuous X 20 mm
Features
High diameter coverage with a shrink ratio of 2:1

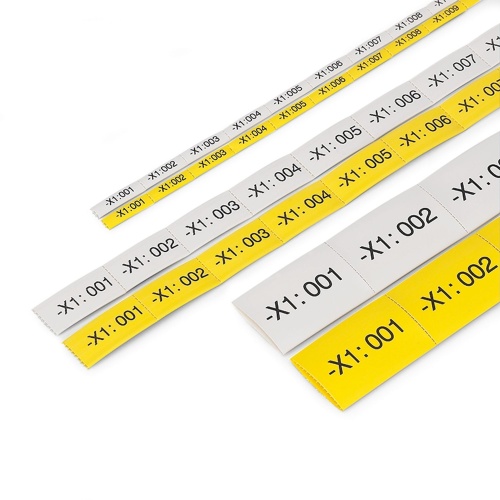

High flexibility, as individual marker lengths ranging from 3.45 mm ... 2000 mm (0.14" ... 78.7") can be realized in combination with the cutter and perforation cutter

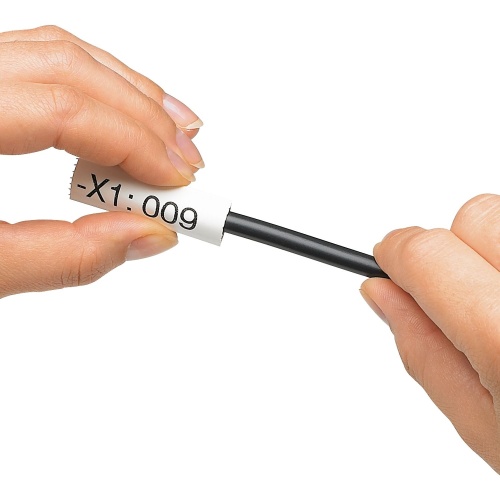

As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position

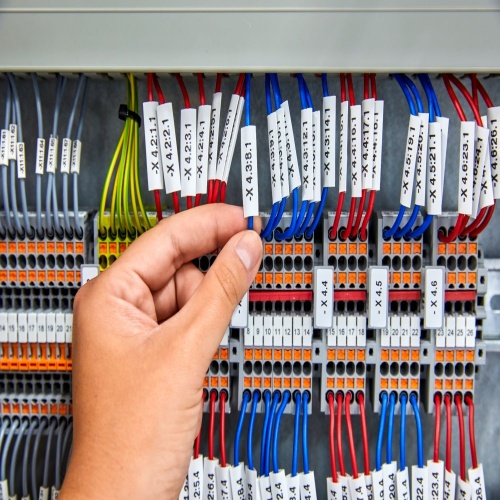

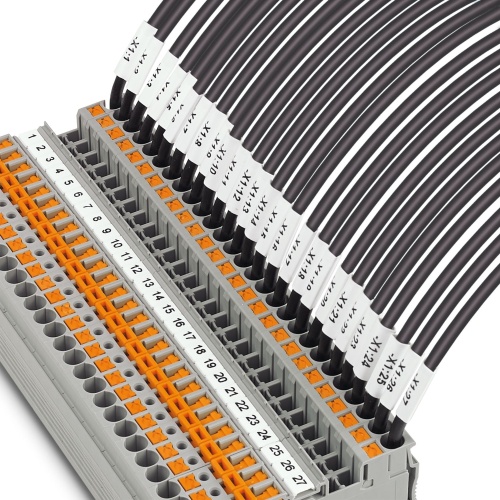

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Widely used and proven worldwide in the railway industry
