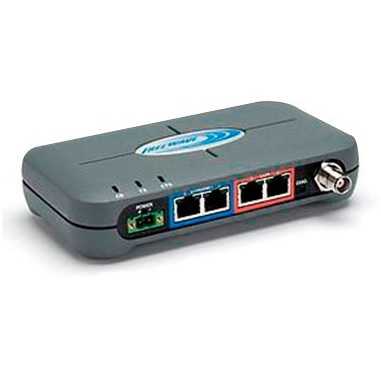

FreeWave FGR2-PE Radio 900 MHz Ethernet Radio Enclosed (Non UL)
FreeWave FGR2-PE, 900 MHz Ethernet Radio Enclosed 902-928 MHz Access Point/Remote/SF (Not UL approved) Ethernet Enclosed Radio. 6-30v up to 1 watt Frequency Hopping Spread Spectrum. Data rates of 154 Kbps.
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Freewave Z9-P2 Zumlink Radio 900 MHz 4 Port Board Level |
Go to this replacement |
FreeWave FGR2-PE 902-928 MHz Access Point/Remote/SF (Not UL approved) Ethernet Enclosed Radio. 6-30v up to 1 watt Frequency Hopping Spread Spectrum. Data rates of 154 Kbps with sensitivity of -108 at 115Kbps and -105 at 153.6Kbps. Long Range: Point-to-Point up to 60 miles with clear line of sight and Point-to-Multipoint up to 60 miles with clear line of sight with error free 32 bit CRC with automatic retransmission. 2 Serial Data ports and 2 Ethernet data ports. Operating Temperature Range -40 F to +167 F. Featuring 2 Serial ports and 2 switched enternet ports. Din Rail Mount sold separately. Strong Signal Performance: Maintains high sensitivity even in harsh RF conditions. Versatile: A single radio can operate simultaneously as a slave and as a repeater. High Noise Immunity: Superior performance in noise congested environments. Error Free Communications: 32 bit CRC with automatic retransmission. UL approved for Class 1 Division2. The FGR2-PE offers industrial serial and Ethernet wireless connectivity using license-free spread spectrum for data communication over long distances. The FGR2-PE is compatible with other FreeWave FGR plus family radios and now offers users a second, switched Ethernet port as well as two serial ports to meet the demands of customers’ wireless automation requirements. The future-proof combination of two serial ports and two switched Ethernet ports give customers the ability to transition from serial to Ethernet data communications without having to replace their wireless communications infrastructure. This cost-effective flexibility of the FGR2-PE product also reduces the need for additional hardware.
| Specifications | |
| Radio Voltage | 12 VDC |
| Radio Voltage | 24 VDC |
| Radio Carrier Power | 1 watt |
| Radio Temperature Range Low | -40f |
| Radio Encryption | AES-128 |
| Radio Data Rate | 154 Kbps |
| Radio Range | 60 miles |
| Radio Housing | Enclosed |
| Radio Temperature Range High | 167f |
| Radio Battery Backup | Non-UL Approved |
| Radio Type | 900 MHz Ethernet Unlicensed |
| Radio Data Protocol | Ethernet |
| Radio Data Interface | Serial |
| Radio Sensitivity | -105 |
| Manufacturer | FreeWave |
| Line | FGR2 |
| Component | Radio |
