Omega FL-10B-V Variable Area Flow Meter
Normally In Stock
Code: 804499

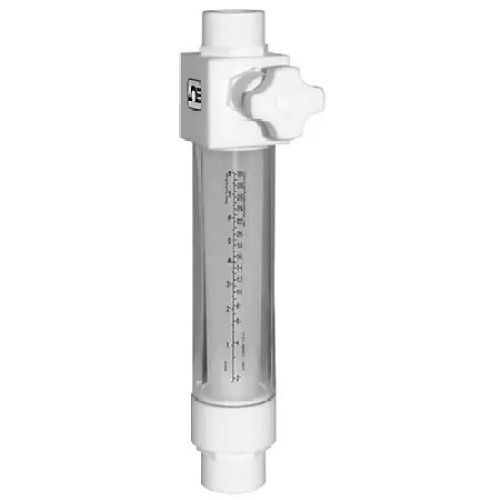

Omega FL-10B-V Variable Area Flow Meter
Condition: New
Usually ships Same Day or Next Day$782.77
Sale Price
$652.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Variable Area Flow Meter, Water, 25 mL/min to 250 mL/min, 100 psi, 1/4 " NPT Female, 121 °C (250 °F), ± 5 %, Direct Read, PTFE, PCTFE, w/Valve, FL-10 Series, Each
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Water
Component
Variable Area Flow Meter
(Instrument-Sensor) Span
0 To 100 Psi
Features
Chemically Inert Wetted Components
Removable Protective Shield
Individually Leak Tested
Direct Read Scale
Accuracy± 5 %
Air Flow, Max0 m³/s
Dimensions NoteLow Flow: 144 mm L x 32 mm OD
High Flow: 267 mm L x 51 mm OD
Leak Rate Under Vacuumless than 10^⁻⁷ cc He/s
MaterialsPolypropylene, PTFE, Perfluoroalkoxy
Materials, WettedPCTFE (Polychlorotrifluoroethylene), PTFE
Media CompatibilityWater
Operating Pressure, Max100 psi
Process Connection TypeNPT Female
Process Temperature, Max121 °C
ScaleDirect Read
Scale Length Note0 to 10 markings
