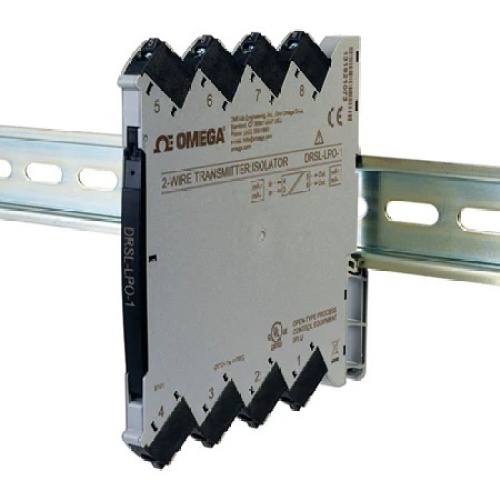

Omega DRSL-LPO-1 DIN Rail Signal Conditioner
Normally In Stock
Code: 804351
Omega DRSL-LPO-1 DIN Rail Signal Conditioner
Condition: New
Usually ships Same Day or Next Day$270.02
Sale Price
$225.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Omega DRSL-LPO-1 DIN Rail Signal Conditioner
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Type
Current
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Component
DIN Rail Signal Conditioner
Features
1 Channel (DRSL-LPO-1) or 2 Channel (DRSL-LPO-2) 2-Wire Transmitter Isolators
Powered By the Host (Output) Current Signal Loop
1:1 Signal Ratio
Low Channel Voltage Drop
Accuracy±8 µA
ApprovalsCE, UL, RoHS
Bandwidth100 Hz
Calibration Temperature, Max28 °C
Calibration Temperature, Min20 °C
Conversion Rate1:1
Current Measurement Range4 to 20 mA
Electrical Output24 mA
EMC Immunity NoteExtended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
EMC StandardNAMUR NE 21
Enclosure RatingsIP20
Height113 mm
Input Range NoteSignal Range (Input to Output):3.8 to 20.5 mA
Signal Conversion: 1:1
Functional Range: 3.5 to 23 mA
(NAMUR NE43 compliant)
Available 2-Wire Transmitter (Tx)
Supply: 3.5 to 32.5V
Input TypeCurrent
InstallationPollution degree 2 and measurement/overvoltage category II
IsolationIsolation Voltage (Test): 2.5 kVac
Isolation Voltage (Working):300 Vac
Length115 mm
MountingDIN Rail 35 mm Standard, EN 60715
Noise Calibration>60 dB
Operating Temperature, Max70 °C
Operating Temperature, Min-25 °C
Output DetailOutput Loop Current Limitation:24 mA typical
Output Overload: 50 mA max
Output SignalCurrent
Output ValueProcess
Power Consumption50 mW
Relative Humidity0 to 95% RH (non-condensing)
Response Time< 5 ms
Response Time NoteResponse Time (0 to 90%, 100 to 10%): <5 ms
Screw Terminal Torque0.5 Nm
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power TypeDC
Supply Voltage6 to 35 Vdc
Temperature Coefficient≤±0.02 µA [(T-25°C) x Vsupply]
Temperature Coefficient NoteTemperature Coefficient (>25°C):≤±0.02 µA [(T-25°C) x Vsupply]
Temperature Coefficient (<25°C):≤±0.07 µA [(T-25°C) x Vsupply]
Voltage LossInput to Output: 2.5 V
Weight70 g
Width6.1 mm
Wire Gauge26 to 12 AWG
