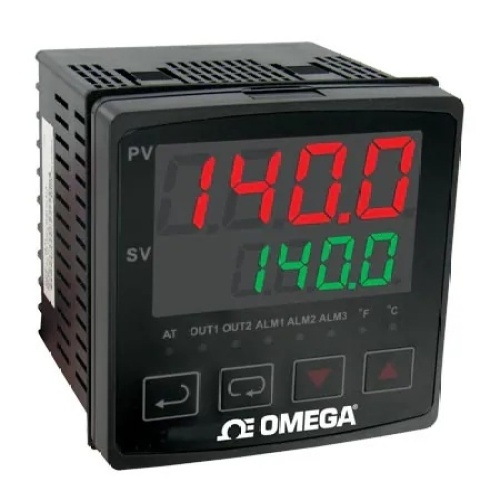

Omega CN7253 1/4 DIN TEMP/PROCESS CONTROLR
Normally In Stock
Code: 776197
Omega CN7253 1/4 DIN TEMP/PROCESS CONTROLR
Condition: New
Usually ships Same Day or Next Day$369.77
Sale Price
$308.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ramp & Soak Controller, T/C, RTD, Analog V/I, 1 I/P, 4 mA to 20 mA, Relay, 2 O/P, 1/4 DIN, AC, 3.5 Digit Dual, Multiple Ramp & Soak, CN7200, Each
Specifications
(Instrument-Sensor) IP Protection
IP66
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
100 - 240 Vac
Component
Ramp/Soak Controller
Features
Dual 4-Digit LED Display
8 Ramp/Soak Programs, 8 Segments Each
Universal Inputs
Autotune
Accuracy± 0.25 %
Accuracy Detail± 0.25% span, ± 1 least significant digit
Additional Features 12 Alarm Outputs
Control OutputSPDT Relay
Cutout Dimensions92 × 92 mm
Data InterfaceRS485 Modbus
Depth Behind Panel79.2 mm
Display Type4 Digit LED
Display Type NoteTwo 4-digit, 7-segment
PV: Red, 19 mm (0.75") H
SV: Green, 12.7 mm (0.5") H
Enclosure RatingsIP66
Height96 mm
Input TypeThermocouple, RTD, mA, Voltage
Length15.8 mm
Measurement TypeCurrent, Temperature, Voltage
Measuring RangeType K: -200 ~ 1300°C,
Type J: -100 ~ 1200°C,
Type T: -200 ~ 400°C,
Type E: 0 ~ 600°C,
Type N: -200 ~ 1300°C,
Type R: 0 ~ 1700°C,
Type S: 0 ~ 1700°C ,
Type B: 100 ~ 1800°C,
Type L: -200 ~ 850°C,
Type U: -200 ~ 500°C,
Type TXK: -200 ~ 800°C,
RTD (JPt100): -20 ~ 400°C,
RTD (Pt100): -200 ~ 850°C,
Resistance (Ni120): -80 ~ 300°C,
Resistance (Cu50): -50 ~ 150°C,
Analog Voltage Input (0~5V): -999~9999,
Analog Voltage Input (0~10V): -999~9999,
Analog Voltage Input (0~20m A): -999~9999,
Analog Voltage Input (4~20m A): -999~9999,
Analog Voltage Input (0~50m V): -999~9999
Memory BackupNon-Volatile
Number of Control Outputs2
Number of Inputs1
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Ramp and Soak8 Ramp/Soak Programs, 8 Segments Each
Supply Power Note100 to 240 Vac, 50/60 Hz
Supply Power TypeAC
Supply Voltage100 to 240 Vac
Weight425 g
