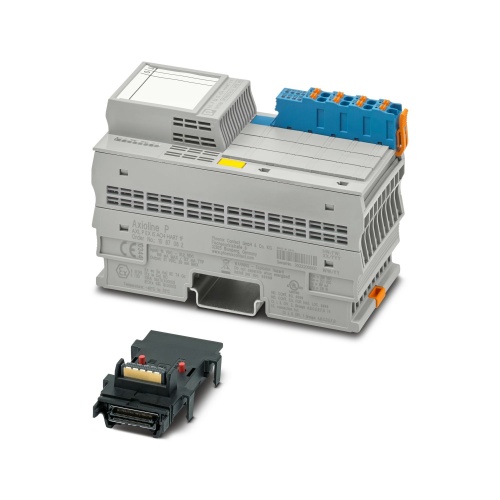

Phoenix Contact 1087082 Analog module AXL P EX IS AO4 HART 1F
Normally In Stock
Code: 764687
Phoenix Contact AXL P EX IS AO4 HART 1F - Analog module, Push-in connection, DIN Rail Mount, 24 ... 16 AWG - 1087082
Condition: New
Usually ships Same Day or Next Day$735.47
Sale Price
$612.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1087082 The Axioline P is an analog output module with four channels, capable of producing currents between 0 mA and 20 mA per channel, while also supporting additional current paths. It features a 2-conductor connection technology and operates at a local bus transmission speed of 100 Mbps, utilizing HART functionality for communication. The module is designed to be intrinsically safe and meets IP20 protection standards, with the unit consisting of a base module and included connectors.
Specifications
PLC & IO Connection Method
Push-In Connection
Manufacturer
Phoenix Contact
Component
I/O Component
PLC & IO Mounting Type
DIN Rail
Features
4 analog output-powered control signals for HART
Current range: 4 mA ... 20 mA and 0 mA ... 20 mA
Cyclic access to PV, SV, TV, QV, and Loop Current
Temperature range: -40 °C ... +70 °C
Hot-swappable
Intrinsically safe analog inputs with connection to Zone 1, Zone 0 or Division 1
Downloads
001183332_01_ULListCA_E238705.pdf001295332_01_ULListHazlocUS_FIILEE196811.pdf001295333_01_ULListHazlocCA_FILEE196811.pdf001295334_03_IECEx_IECExUL200044X.pdf001295336_03_DEMKOATEX_DEMKO20ATEX2370X.pdf001398835_03_CCCExCN_2021122316114727.pdfaxioline p system and installation.stpchina rohs declaration-spreadsheet.pdfChina RoHS Declaration_1087082_03_en.pdfcoc document.pdfeu declaration of conformity.pdffit, mttf, mtbf (predicted failure rate for the statistical demonstration of reliability of the article).pdfPhoenix 1087082 Manufacturers declaration English.pdfPhoenix 1087082 Tender Text English.zipproduct drawing.dxfSpecification Sheet.pdf
