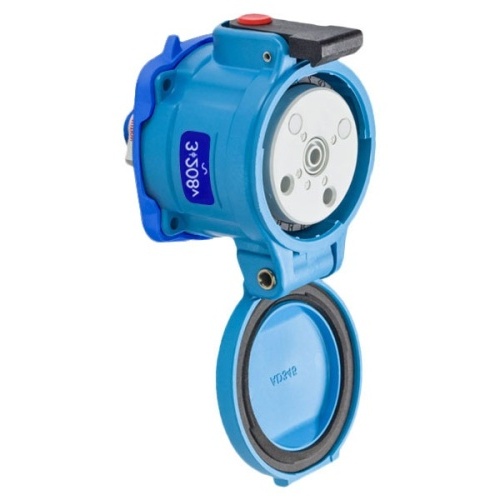

Meltric 31-34232-K16-4X DR50 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X 2P+G 50 A 208 VAC 60 Hz NO AUX TYPE 4X WATERTIGHTNESS
Normally In Stock
Code: 763311
Meltric 31-34232-K16-4X DR50 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X 2P+G 50 A 208 VAC 60 Hz NO AUX TYPE 4X WATERTIGHTNESS
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$475.27
Sale Price
$396.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 31-34232-K16-4X DR50 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X 2P+G 50 A 208 VAC 60 Hz NO AUX TYPE 4X WATERTIGHTNESS
Specifications
Receptacle Color
Blue
Receptacle Contact Configuration
2P+G
Receptacle Voltage
208 VAC
Receptacle Amperage
50 Amp
Receptacle Composition
Poly
Receptacle Size
Size 3
Manufacturer
Meltric
Meltric Series
DR50
Component
Receptacle
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 3R or Type 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence. See pg. 8
